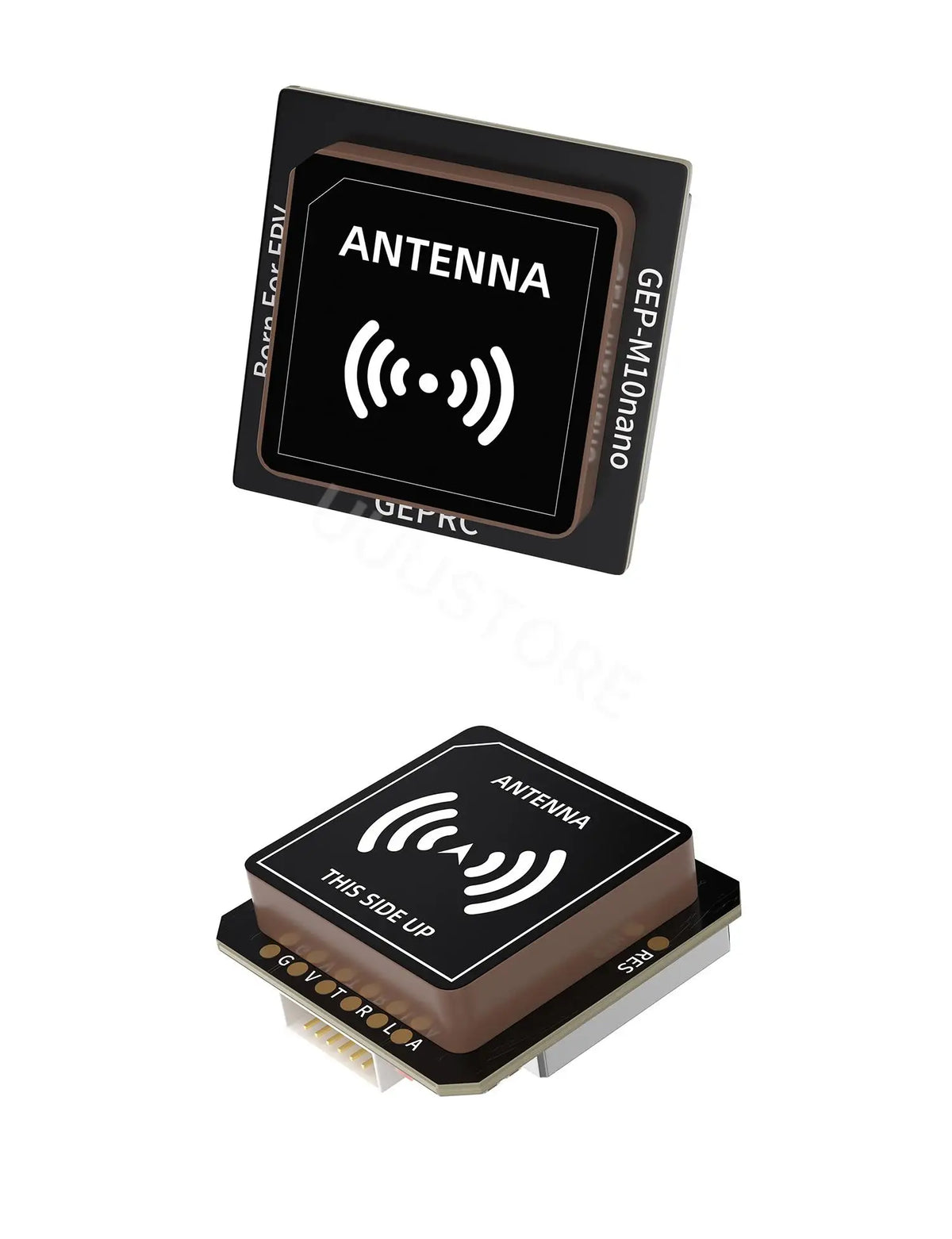

GEPRC GEP-M10 M10-DQ Series GPS Module Integrate SBAS Joint Positioning QMC5883L Magnetometer DPS310 Barometer For FPV Drone

GEP-M10-DQ

€25,12

GEPRC GEP-M10 M10-DQ Series GPS Module Integrate SBAS Joint Positioning QMC5883L Magnetometer DPS310 Barometer For FPV Drone

€25,12

SPECIFICATIONS

Brand Name: NONE

Choice: yes

For Vehicle Type: Helicopters

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: GEP-M10 M10-DQ

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Transmitters

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Size: 1 inch

Technical parameters: value 2

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: Adapter

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

Remark:

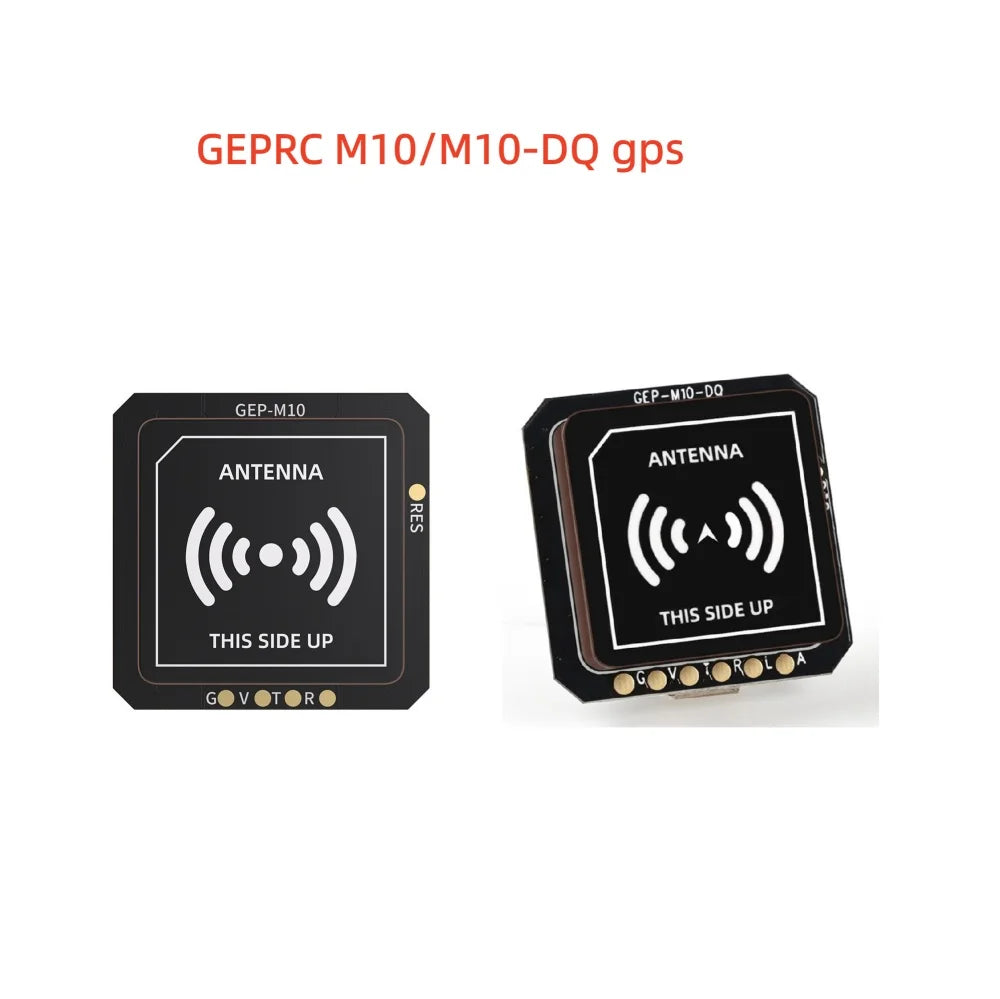

we just sell M10 AND M10-DQ gps in this link

Summary

Hello all FPV enthusiasts, in order to improve customer experience, the GEPRC team has fully upgraded the GPS series product line and now launches GPS series products based on u-blox M10 chip: GEP-M10nano, GEP-M10, GEP-M10-DQ.

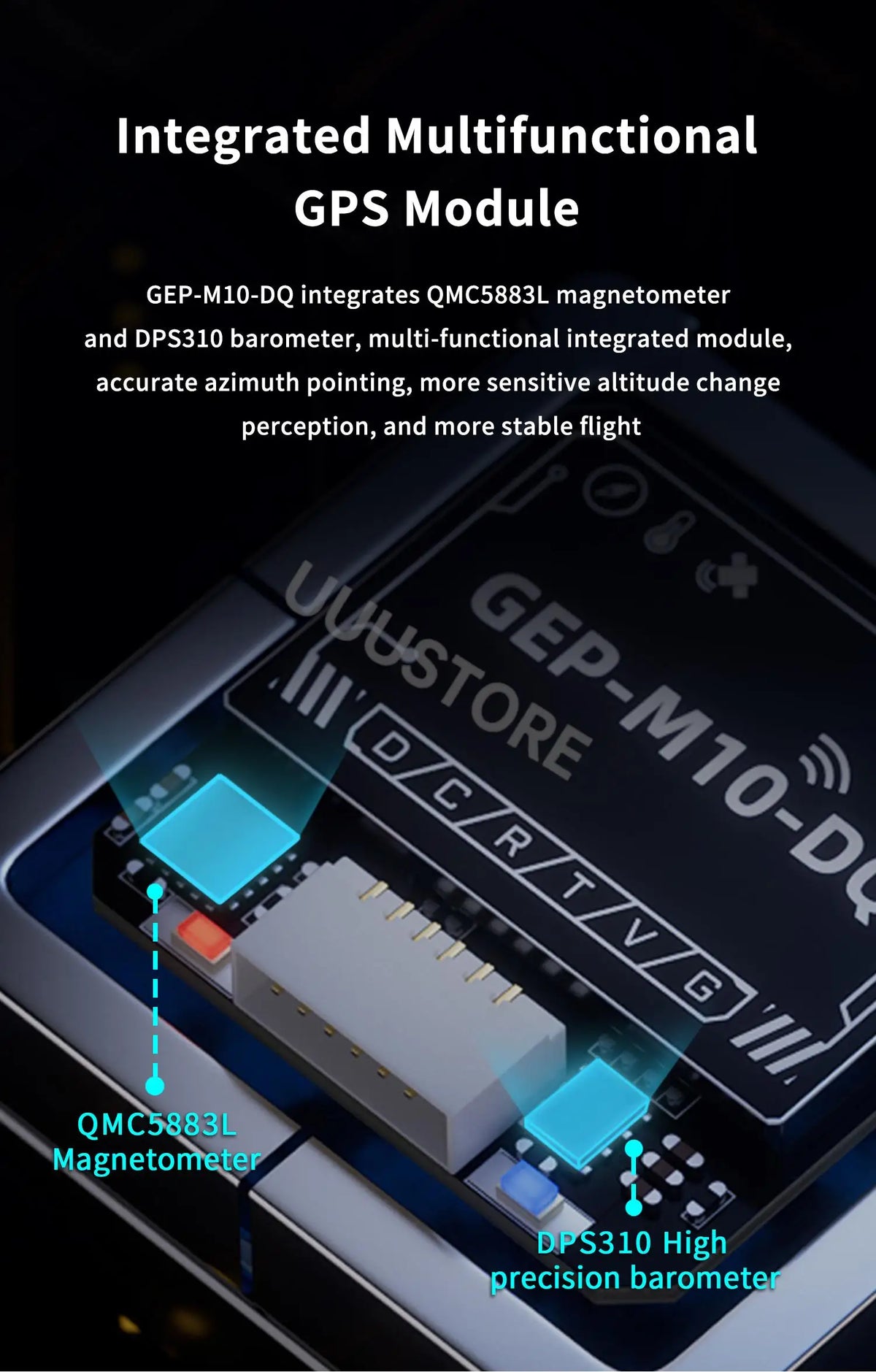

GEP-M10 series GPS positioning module has the features of small size, fast positioning, stable connection, and convenient use. Using the M10 chip solution of u-blox company, it supports GPS + BDS + Galileo + QZSS + SBAS joint positioning, the highest Up to 32 satellites. Built-in Flash chip and farad capacitor can save configuration parameters and fast hot start. Small volume ceramic antenna provides good receiving ability. Integrated QMC5883L magnetometer and DPS310 barometer (only GEP-M10-DQ) can provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV drones, multi-rotors, fixed-wing and other model products.

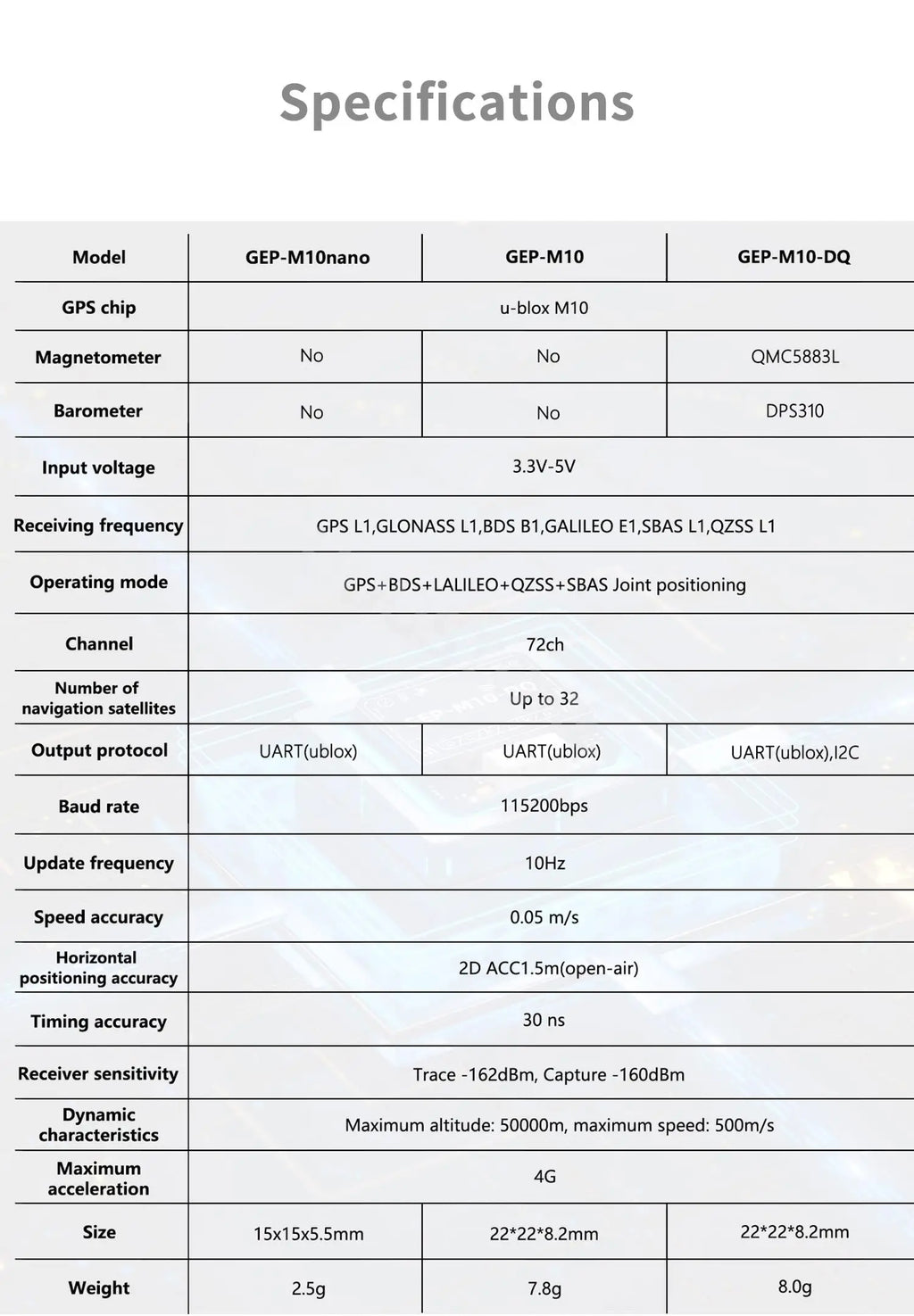

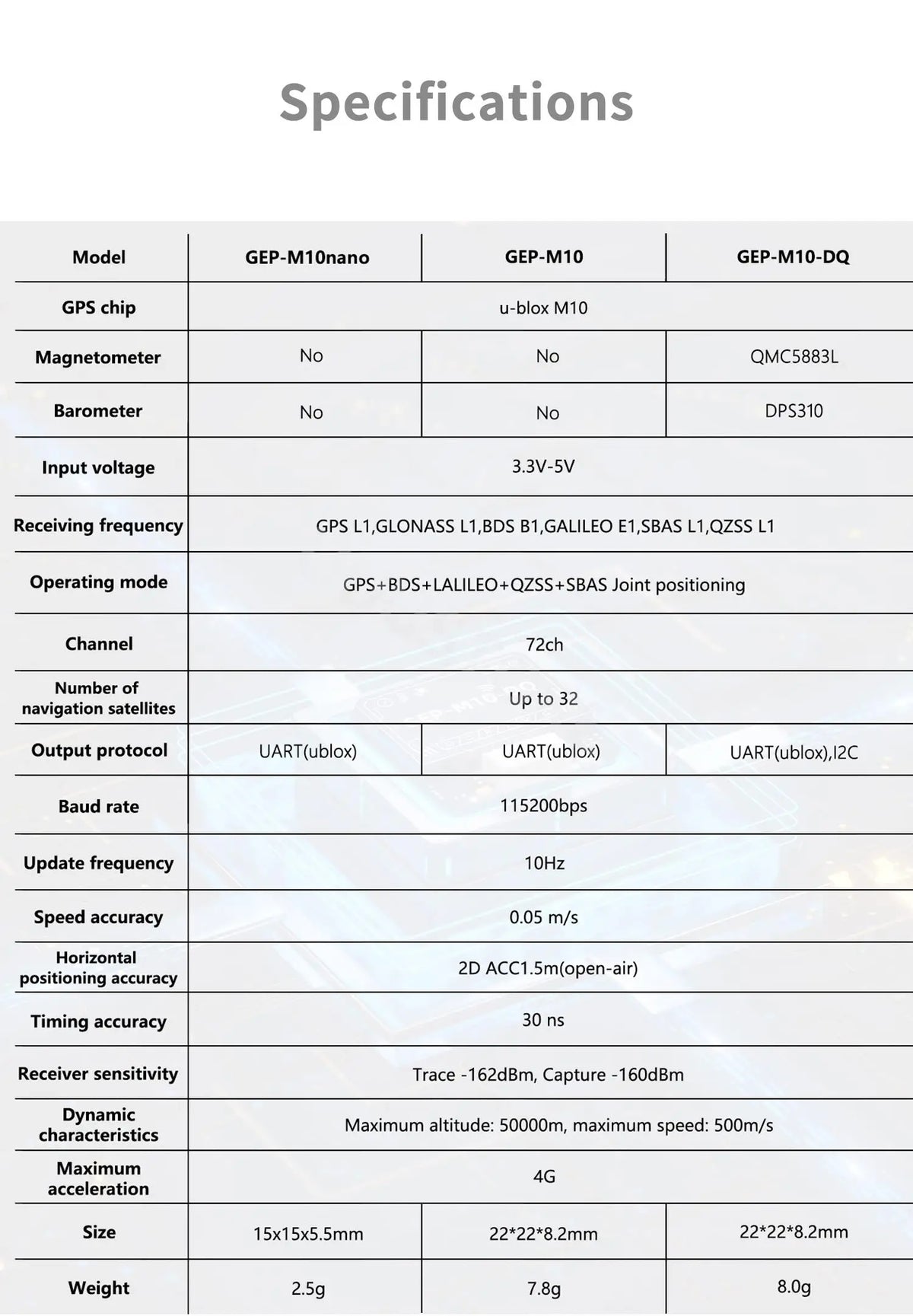

Specifications

Model: GEP-M10nano / GEP-M10 / GEP-M10-DQ
GPS chip: u-blox M10
Magnetometer: GEP-M10nano: No / GEP-M10: No / GEP-M10-DQ: QMC5883L
Barometer: GEP-M10nano: No / GEP-M10: No / GEP-M10-DQ:DPS310
Input voltage: 3.3V-5V
Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
Channel: 72ch
Navigation satellites: Up to 32 pieces
Output protocol: GEP-M10nano: UART(ublox) / GEP-M10: UART(ublox) / GEP-M10-DQ: UART(ublox),I2C
Baud rate: 115200bps
Output Frequency: 10Hz
Speed Accuracy: 0.05 m/s
Horizontal positioning accuracy: 2D ACC1.5m(Weather)
Timing accuracy: 30 ns
Receiver sensitivity: Trace-162dBm, Capture-160dBm
Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
Maximum acceleration: 4G

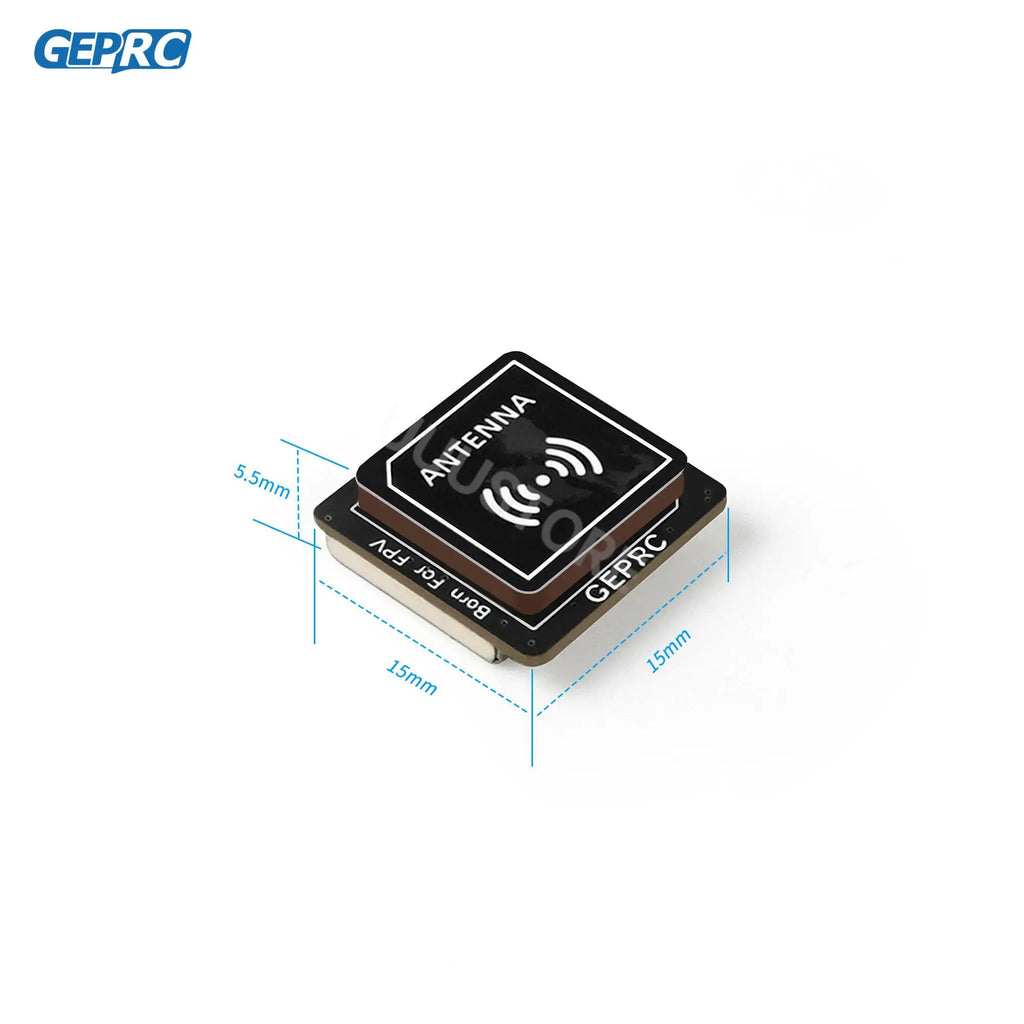

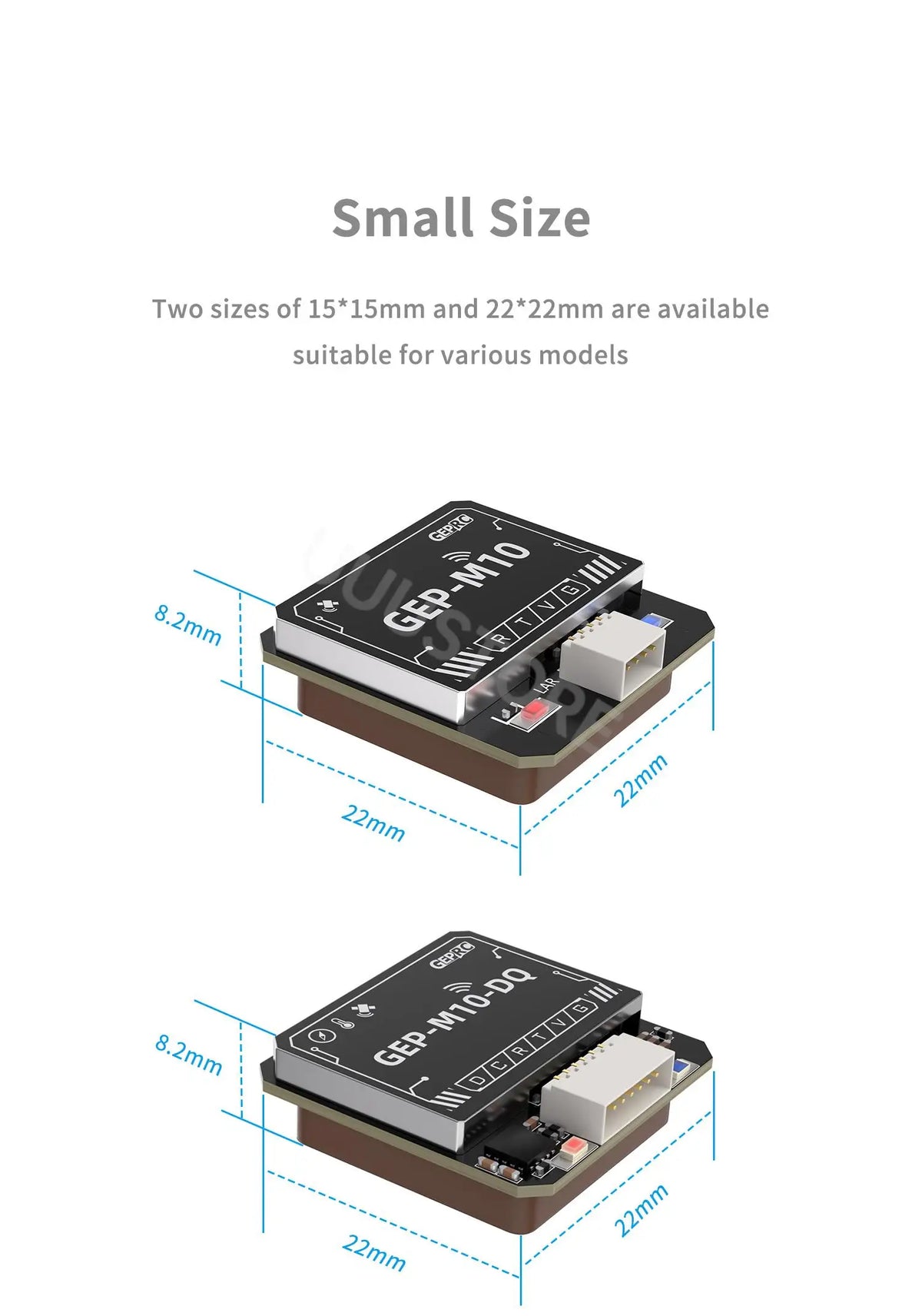

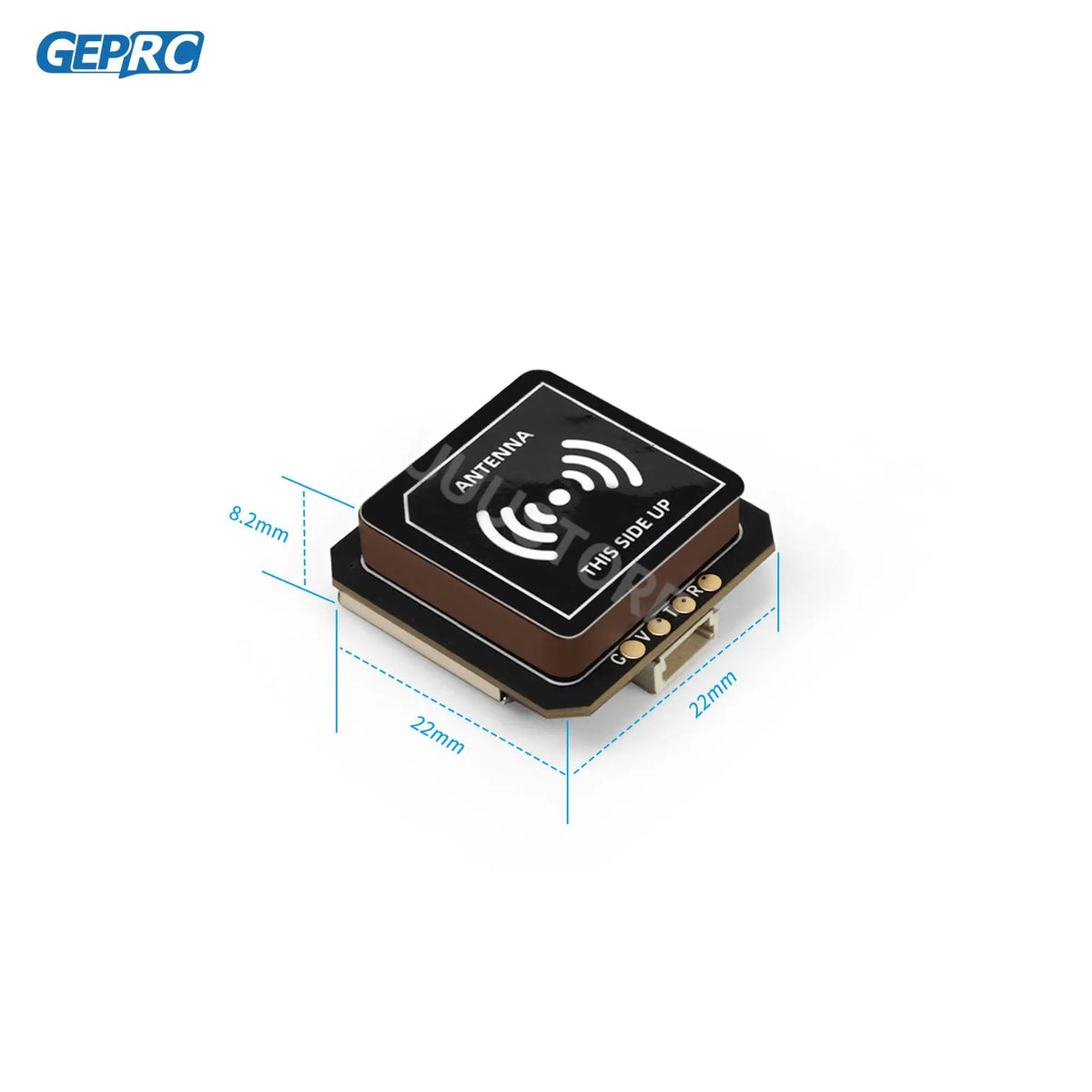

Size: GEP-M10nano: 15x15x5.5mm / GEP-M10: 22*22*8.2mm / GEP-M10-DQ: 22*22*8.2mm

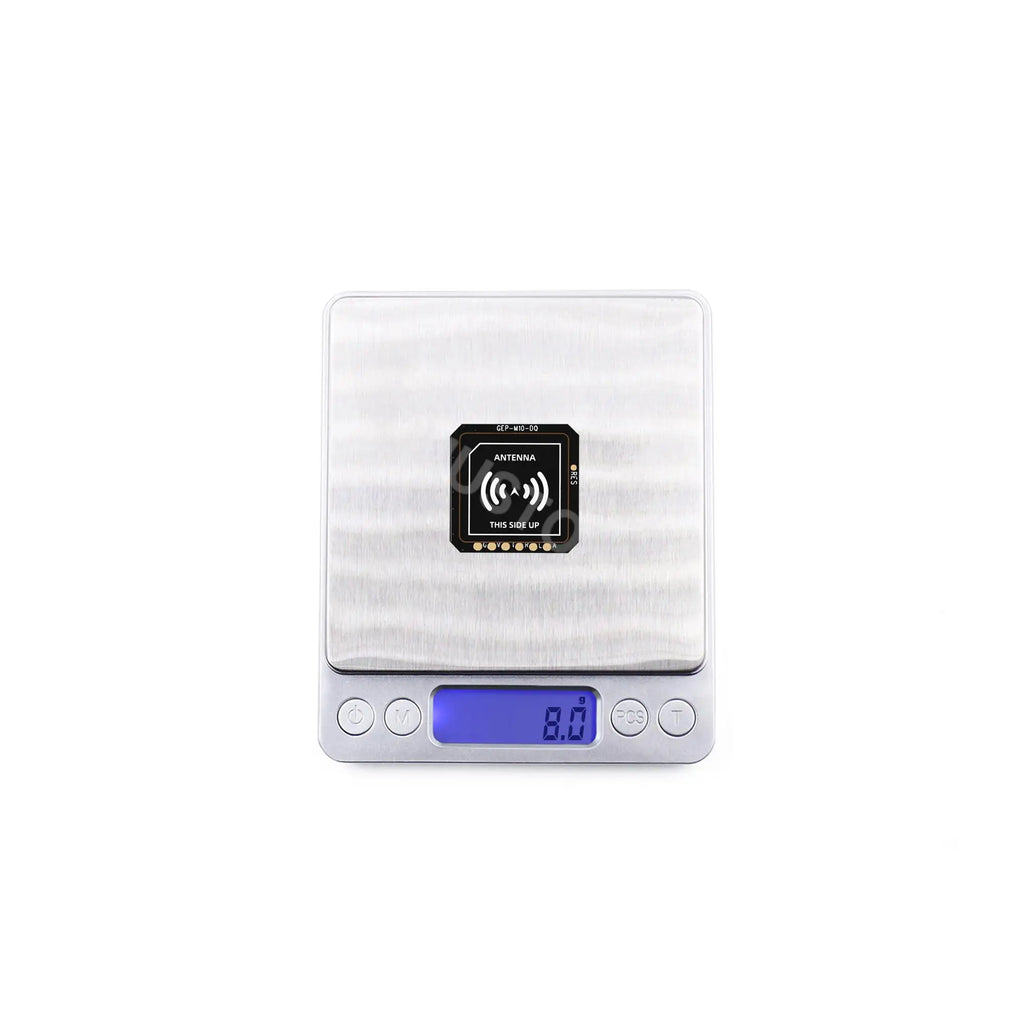

Weight: GEP-M10nano: 2.5g / GEP-M10:7.8g / GEP-M10-DQ: 8.0g
