SPECIFICATIONS
Brand Name: FOCPOT
Choice: yes
For Vehicle Type: Airplanes
High-concerned chemical: none
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal

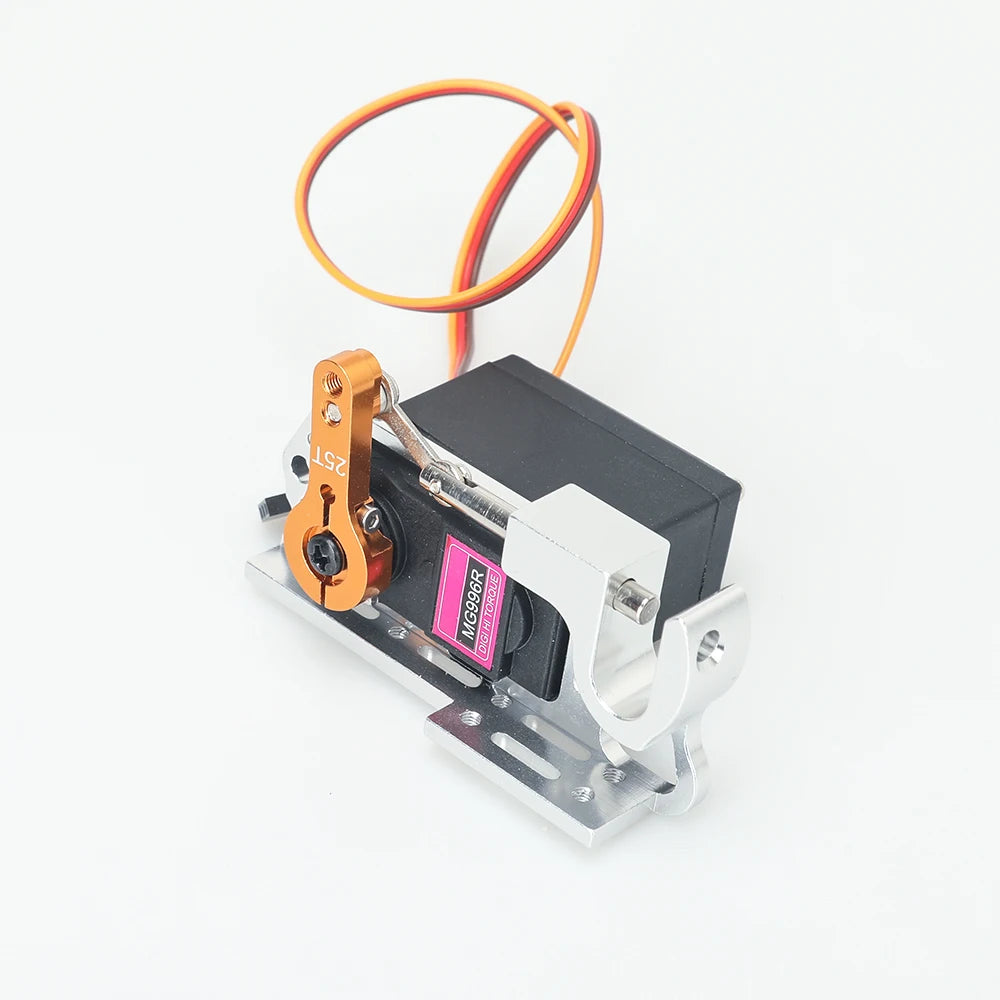

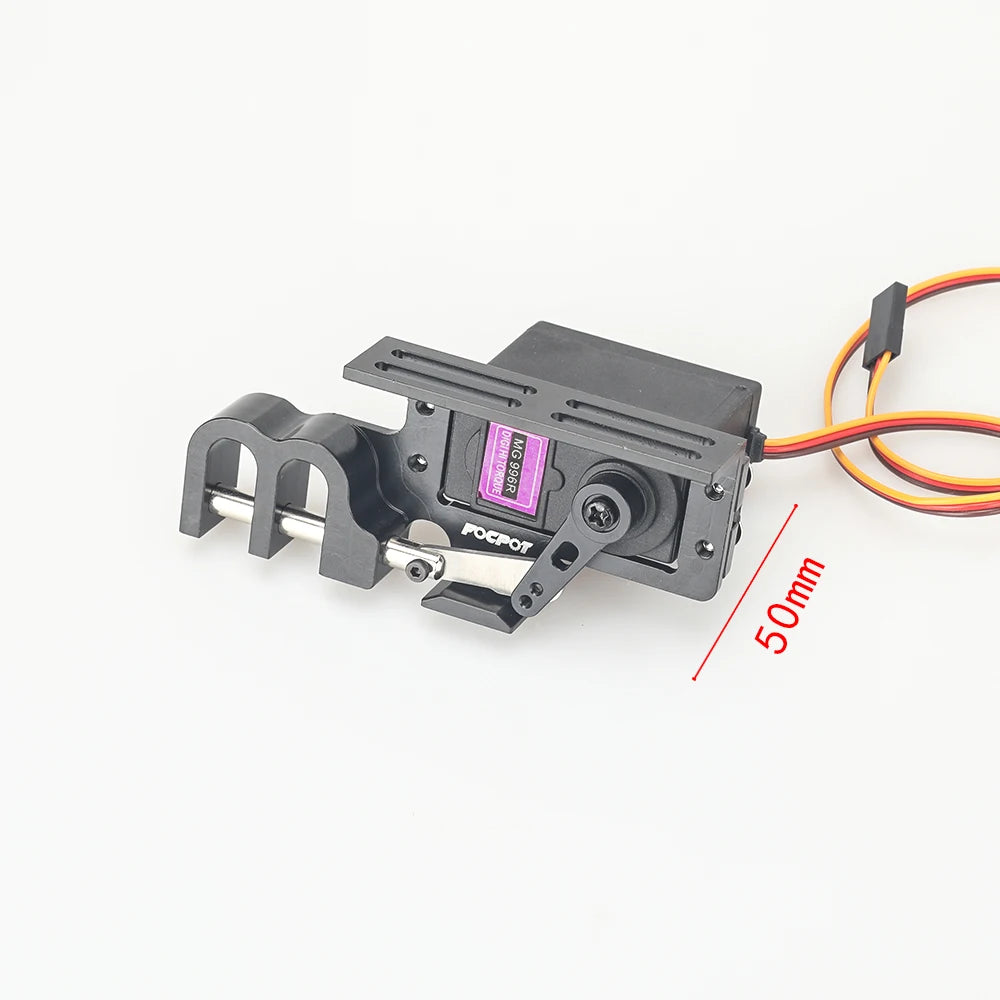

Name: Payload Drop Release Servo
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Servo Accessories
Recommend Age: 14+y
Remote Control Peripherals/Devices: Servos
Use: Vehicles & Remote Control Toys

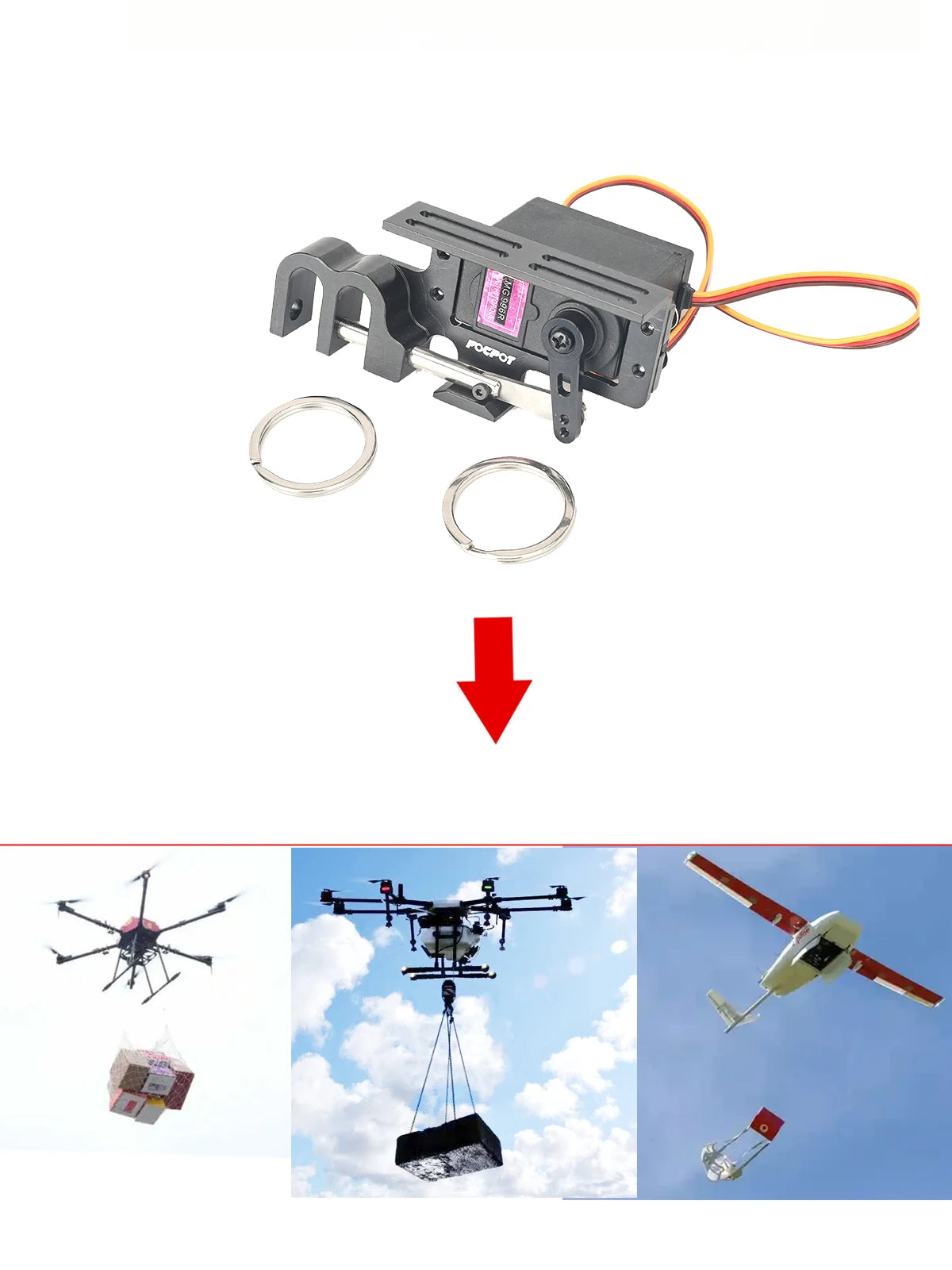

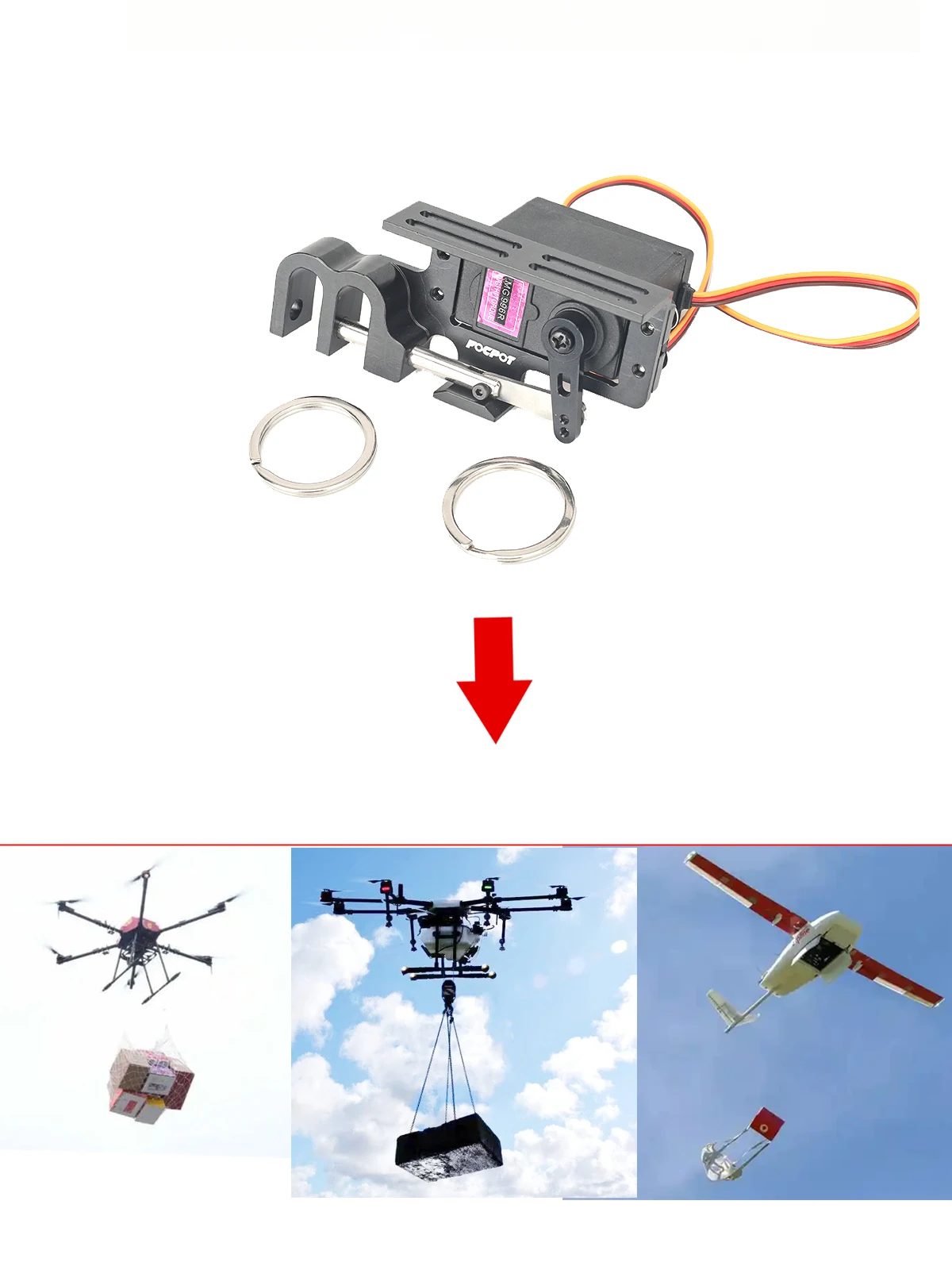

Use for: UAV airdrop cargo
semi_Choice: yes
Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...

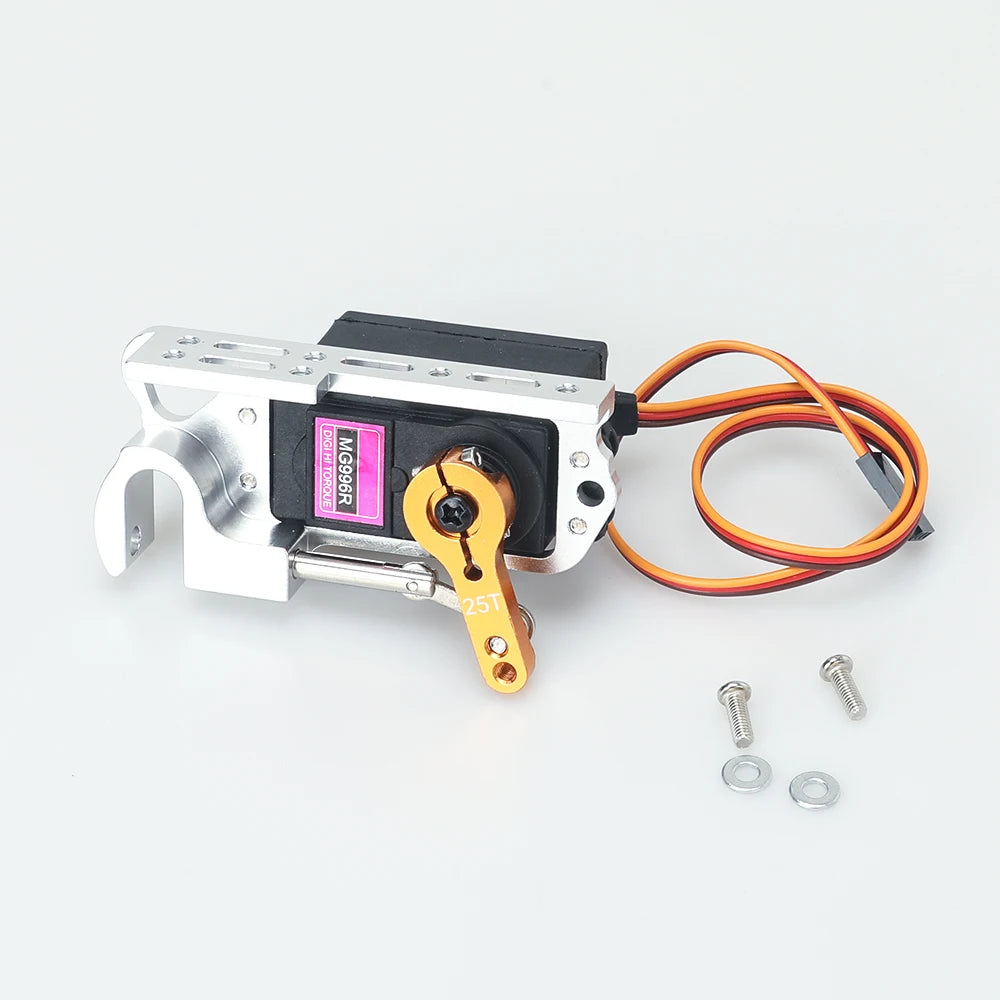

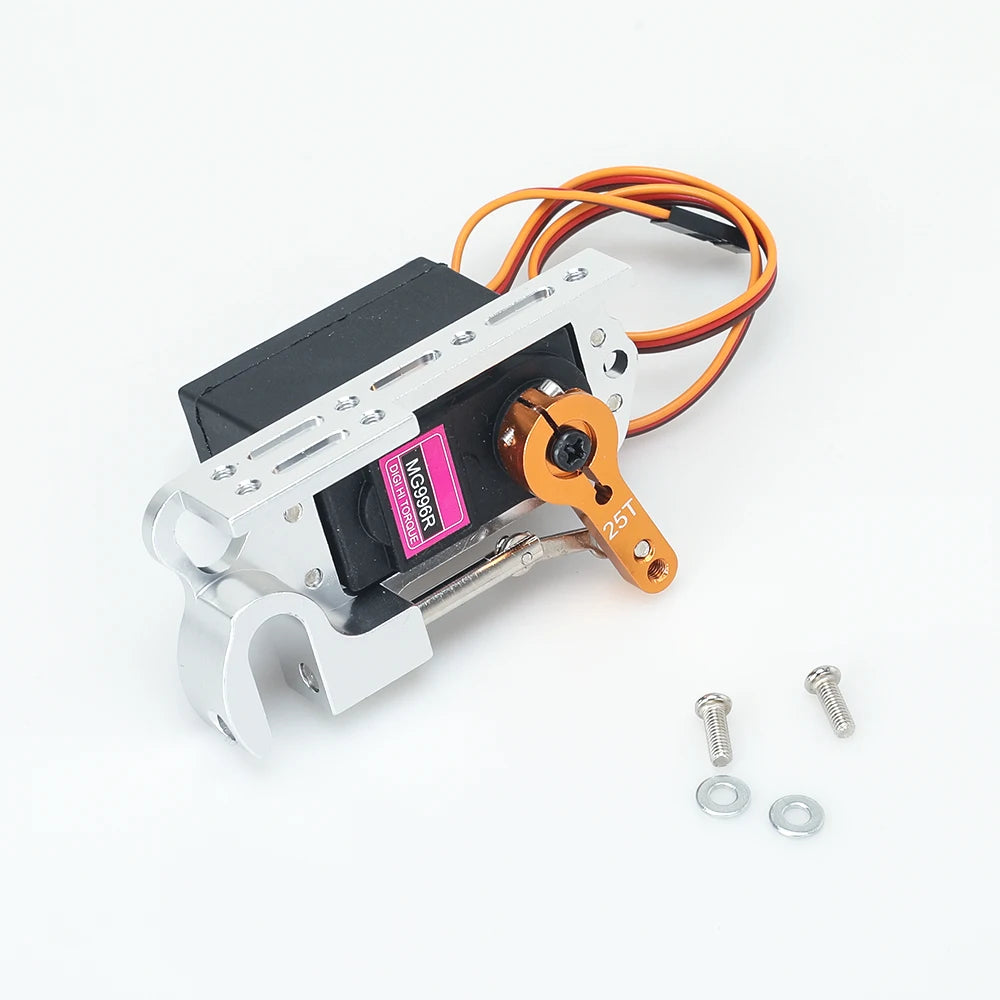

1 way Specification:

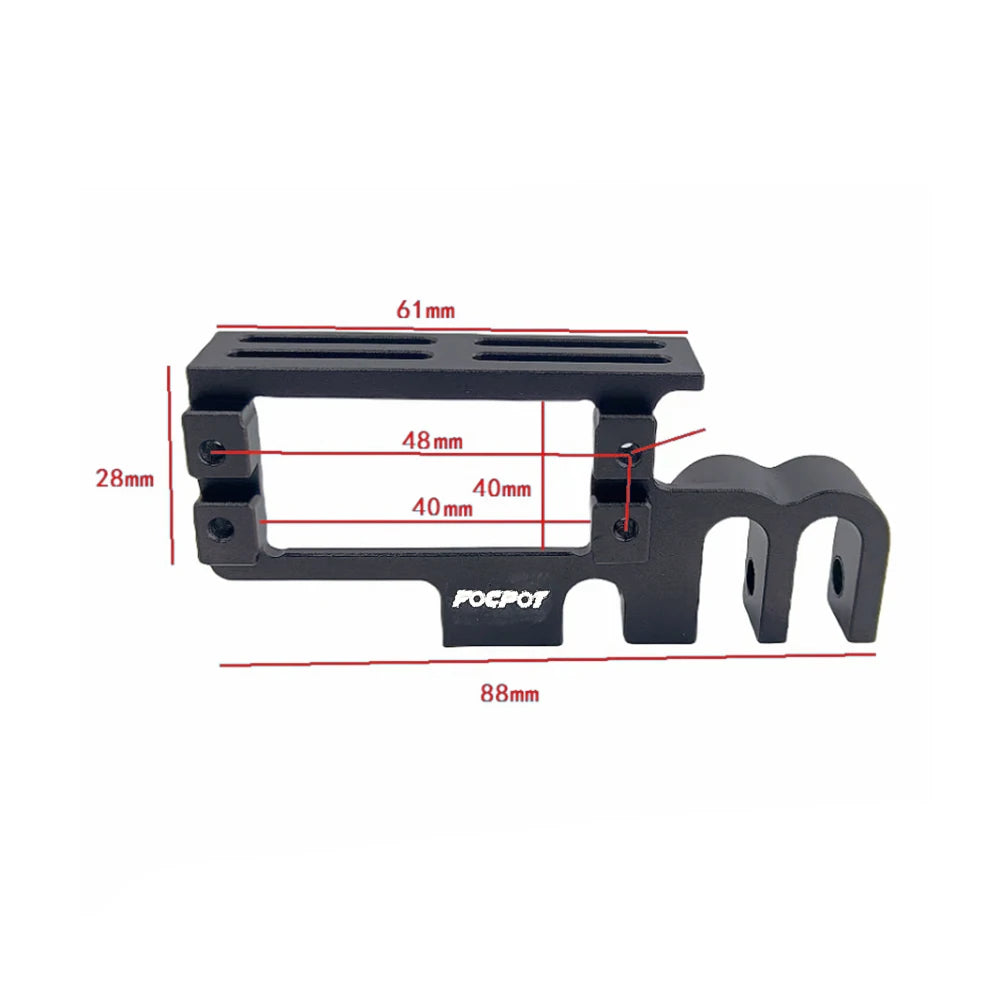

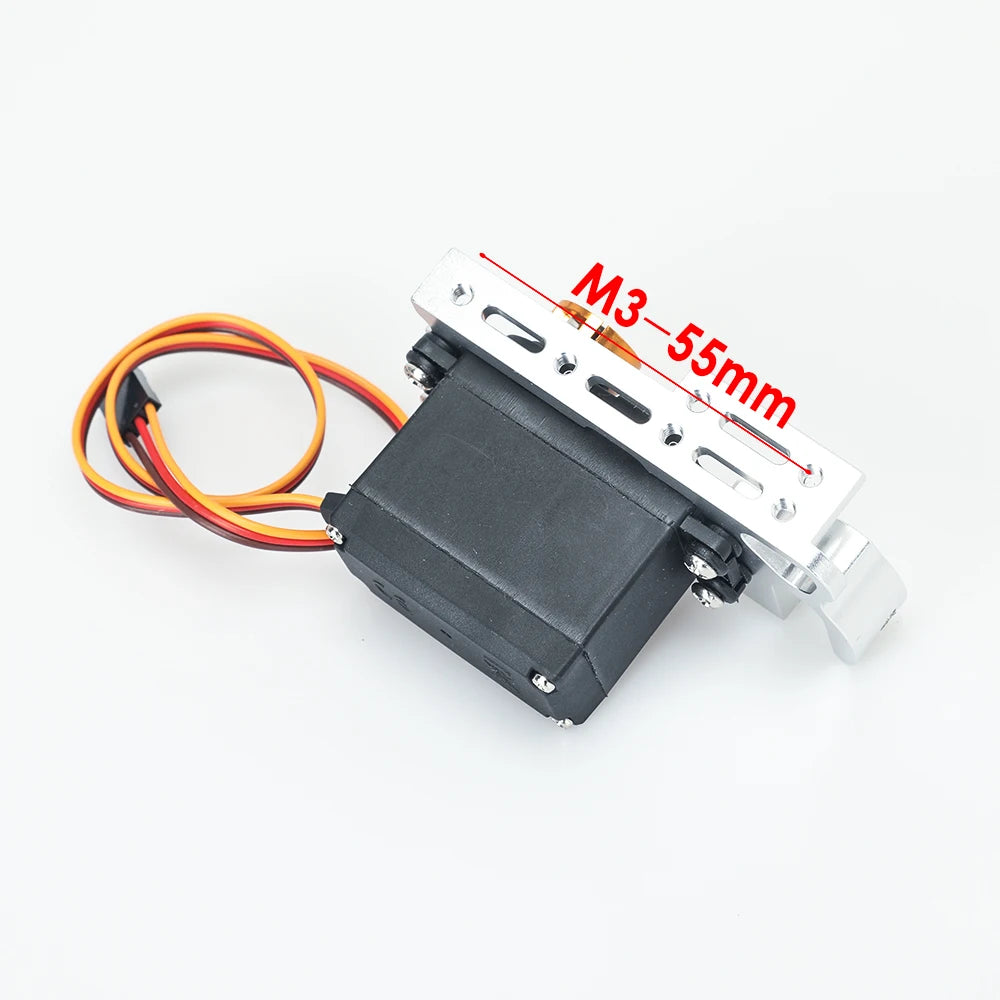

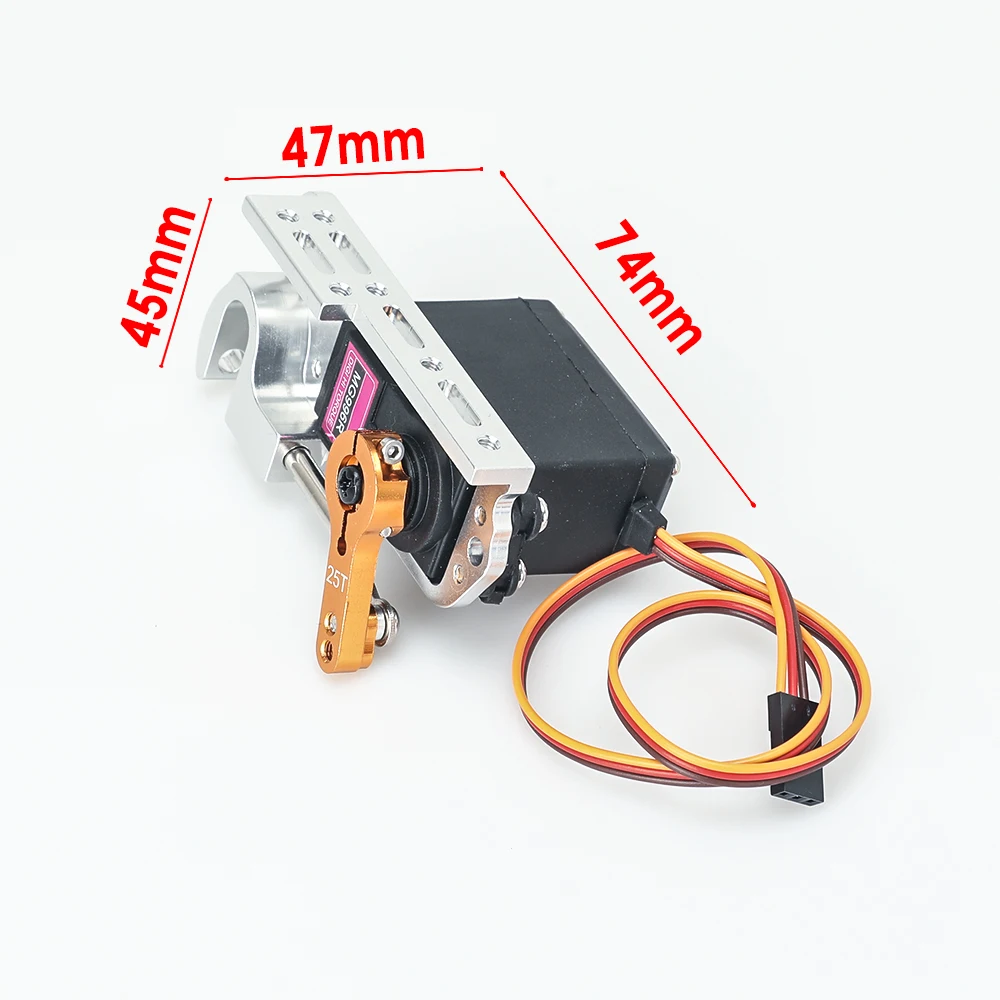

Size: 45mm*47mm*74mm
Weight: 76g
Torque: greater than or equal to 14kg
Voltage: 5V-7.2V
Material: 6061 Aluminum alloy
Payload:15kg goods
Signal:PWM

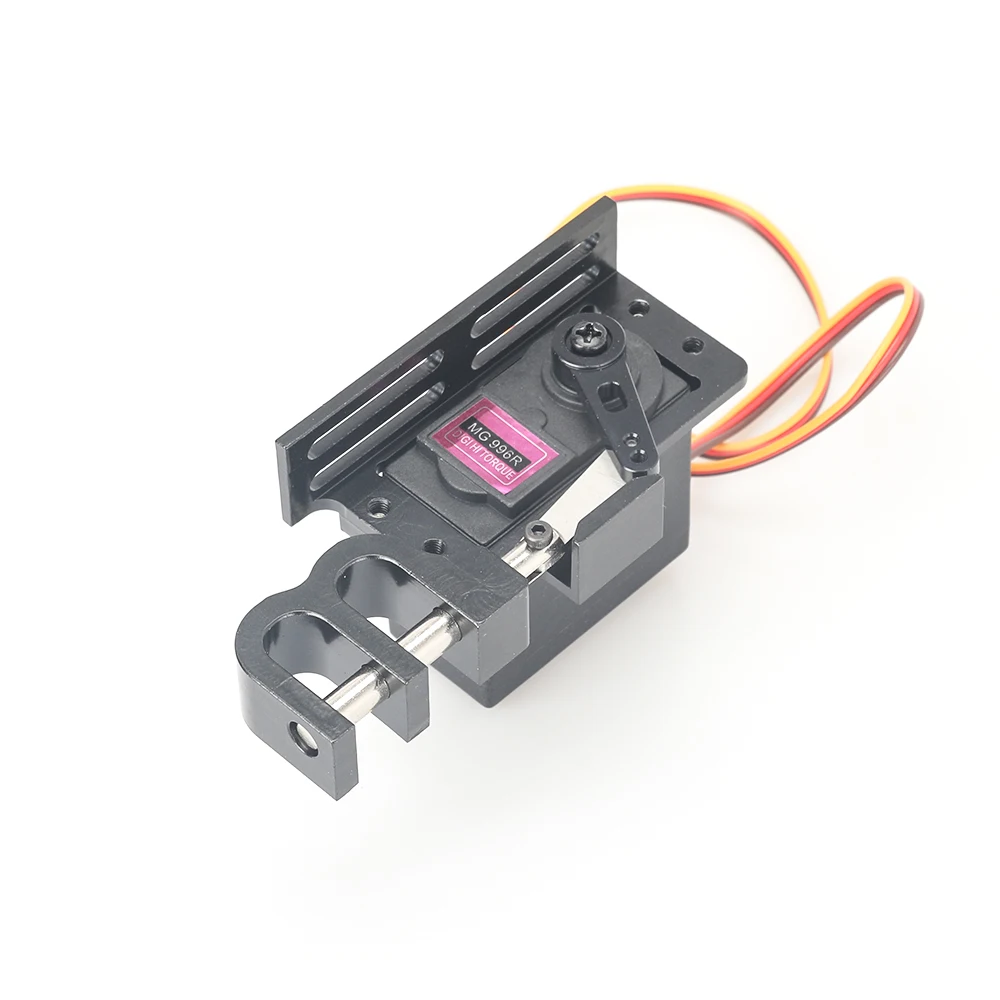

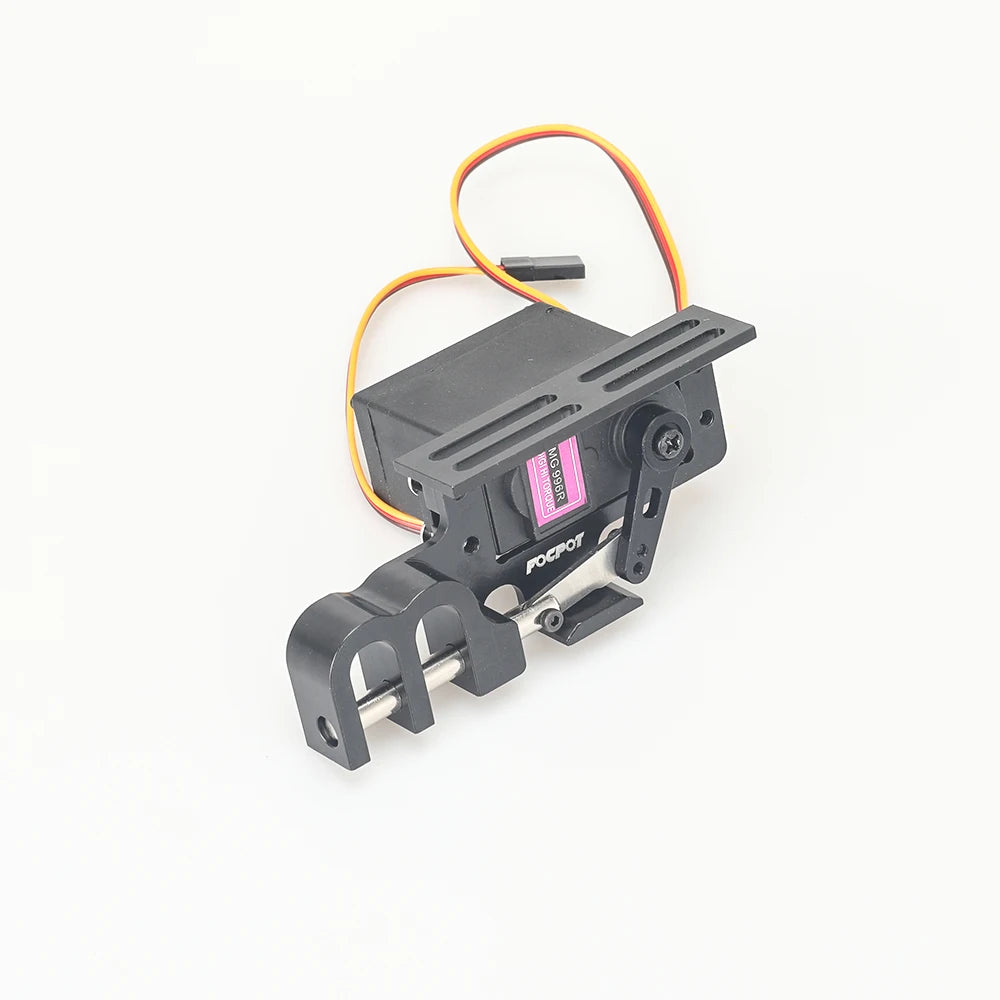

2 way Specification:
Size: 45mm*47mm*74mm
Weight: 76g
Servo Torque: greater than or equal to 14kg
Voltage: 5V-7.2V
Material: 6061 Aluminum alloy
Payload:15kg goods(2 channel total payload )
Signal:PWM
Servo :40g MG996R (If you have not selected the servo, please purchase according to this model）

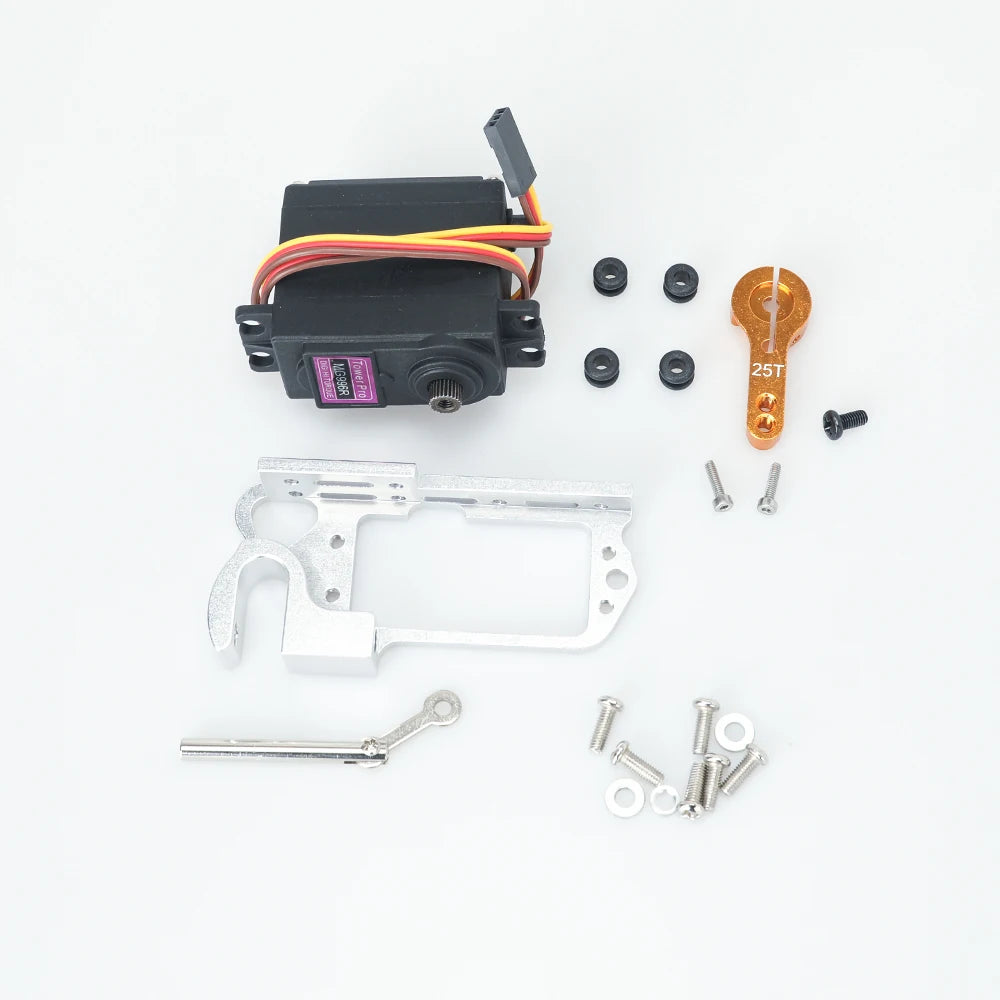

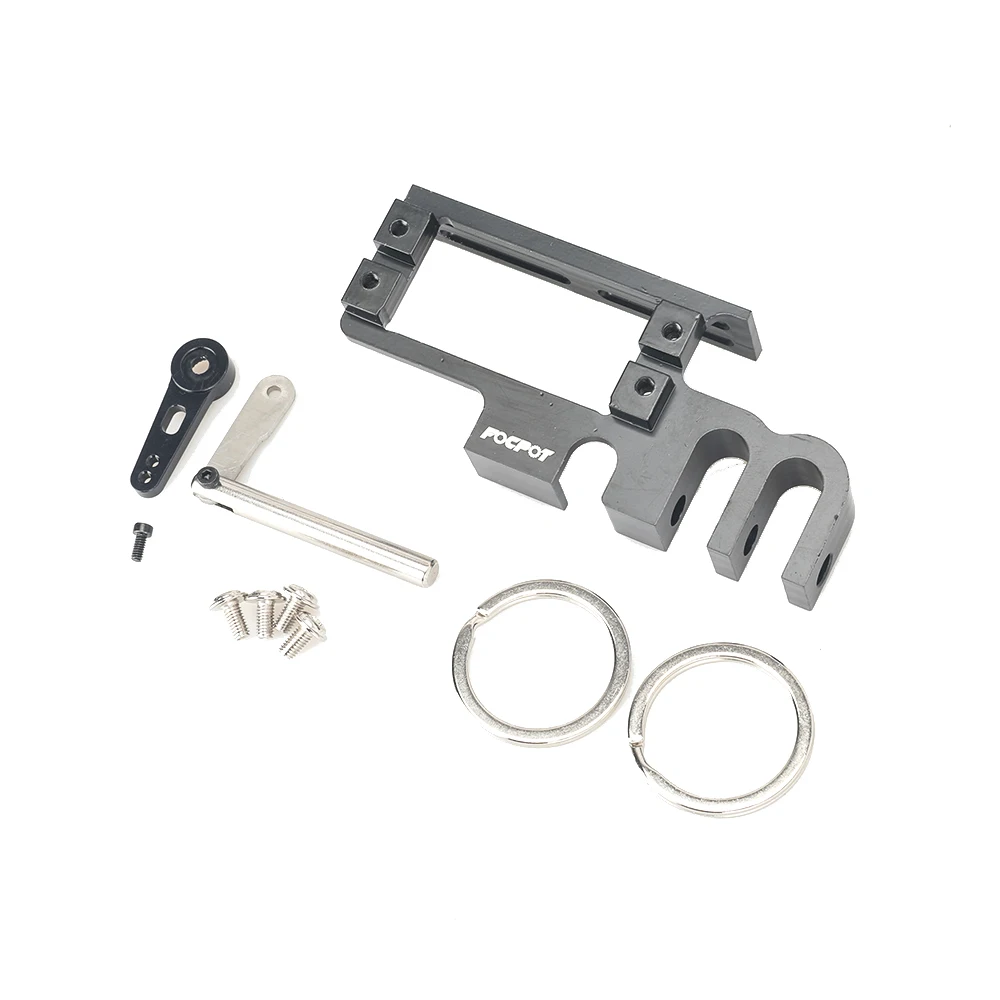

Package including:
1 set throw device
Note:
1.the product is in bulk and needs to be assembled by itself.
2.You need to set the signal endpoint of your remote control.
3. If you need to use a two channel airdrop, your remote control needs to have a three-stage switch.
4. If your BEC power supply is insufficient, it may cause insufficient tension in the servo, resulting in the inability to release the airdrop under heavy loads
