Farm Loader Diesel Kubota Engine Mini Loader Euro5 EPA Wheeled Mini Loader Hydraulic 4×4 Compact Loader 2 Ton Loaders Customized

Farm Loader Diesel Kubota Engine Mini Loader Euro5 EPA Wheeled Mini Loader Hydraulic 4×4 Compact Loader 2 Ton Loaders Customized

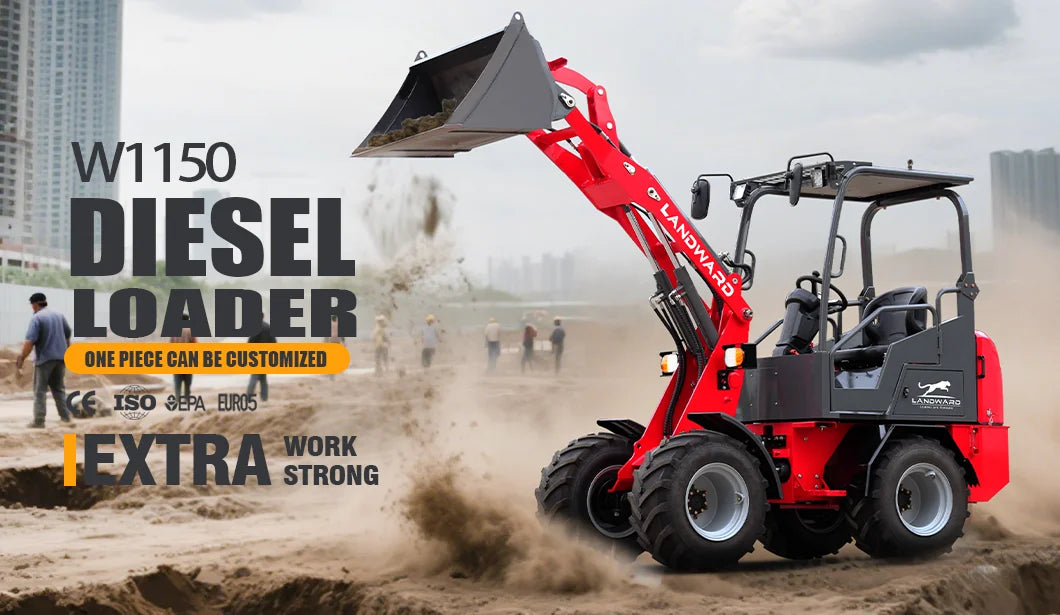

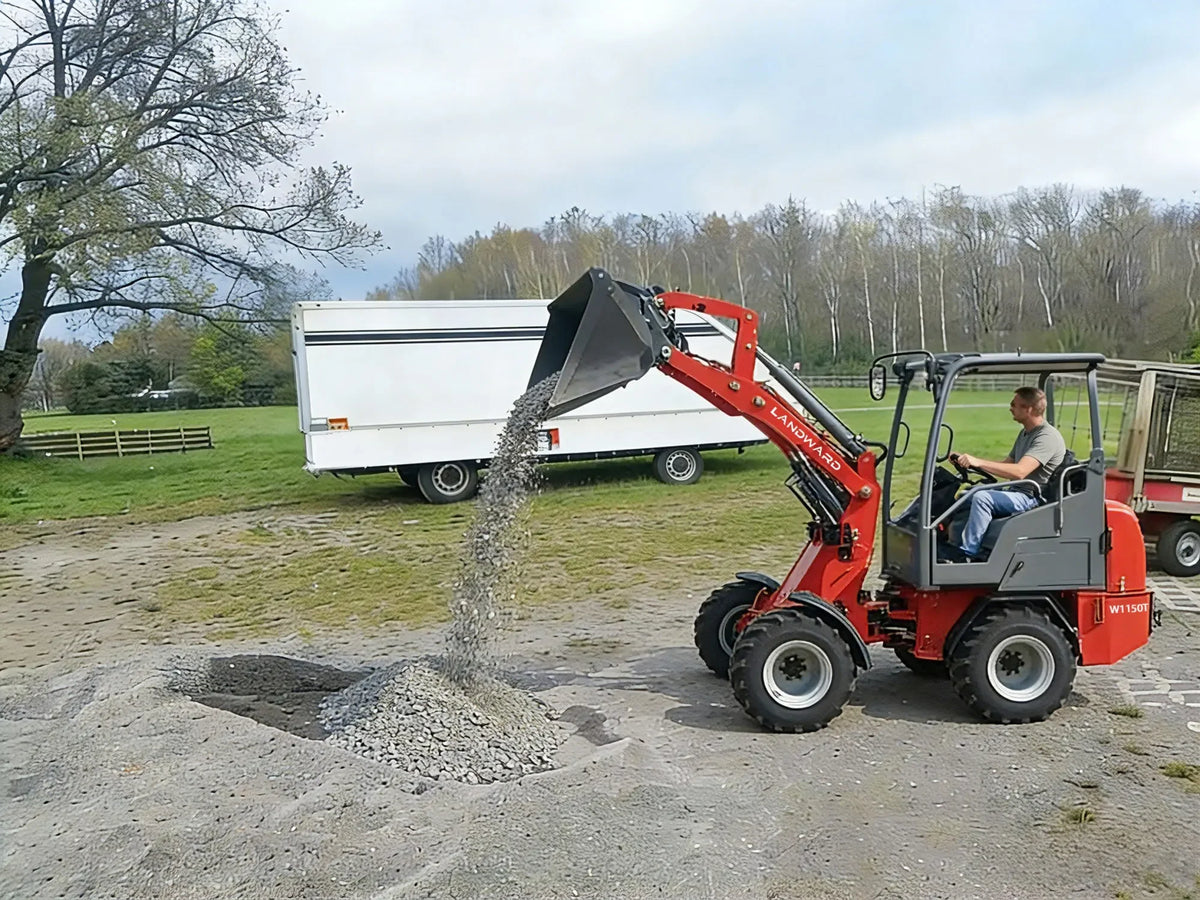

W1150 Loader
€1.270,09
Angebotspreis  €1.270,09 Normaler Preis
Zu Produktinformationen springen
Farm Loader Diesel Kubota Engine Mini Loader Euro5 EPA Wheeled Mini Loader Hydraulic 4×4 Compact Loader 2 Ton Loaders Customized

Farm Loader Diesel Kubota Engine Mini Loader Euro5 EPA Wheeled Mini Loader Hydraulic 4×4 Compact Loader 2 Ton Loaders Customized

€1.270,09
Angebotspreis  €1.270,09 Normaler Preis
Model Number

SPECIFICATIONS

Accessories: Customizable

Applicable Industries: Farms

Brand Name: LANDWARD

Certification: CE,EPA,ISO

Color: Customizable

Condition: New

Core Components: ENGINE

Engine Brand: KUBOTA

Engine Model: KUBOTA 1105

High-concerned chemical: none

Key Selling Points: Multifunctional

Logo: Customizable

Machinery Test Report: Provided

Origin: Mainland China

Place Of Origin: china

Rated Power: 30HP

Showroom Location: China Mainland

Transportation method: DDP/EXW/FOB/CFR/CIF

Type: Wheel Tractor

Video outgoing-inspection: Provided

Warranty: 1.5 Years

Warranty of Core Components: 1 Year



🥰🎉Welcome to LANDWARD HI GROUP store🎉🥰

we are a professional manufacturer of Loaders.


We support OEM & ODM service for any clients, even you only need 1 pcs.

Click on more different models to choose which is suitable for you, or contact us directly,

our sales will recommend most suitable excavator for you.
Talk with our sales colleague, you will get exclusive one-to-one service and outlet sale price


Welcome you from faraway come to China and visit us. We will treat you at the most comfortable way and looking forward to doing business together with you.

Dear Buyer,


This is a customized product, and the price shown is not the final price. Additional costs will apply depending on whether the engine meets Euro 5 EPA standards (for European and American countries) and whether a cab is required. We offer various delivery methods, including DDP, EXW, FOB, CFR, and CIF. Shipping costs will be calculated separately based on the delivery method.


We can customize colors, configurations, models, appearance, logos, engine types, and powertrains. Most importantly, you need to confirm product parameters with our customer service. Specific prices vary depending on country/region and customs requirements; please contact customer service for consultation. Customer service options Finn.All price is based on FOB Qingdao, China, please consult our sales for more details if you need other delivery solutions.

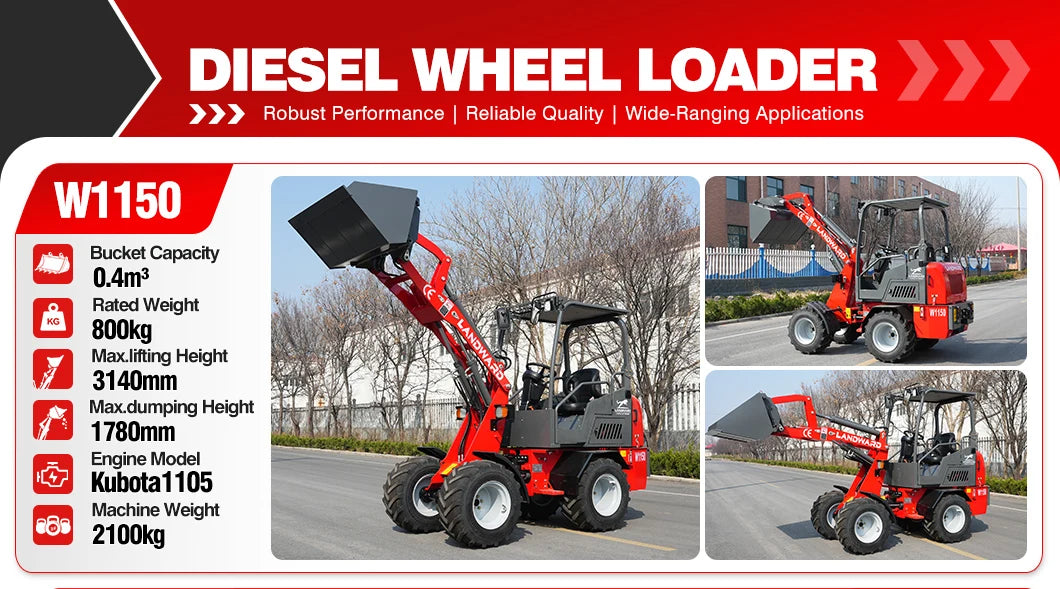

Description

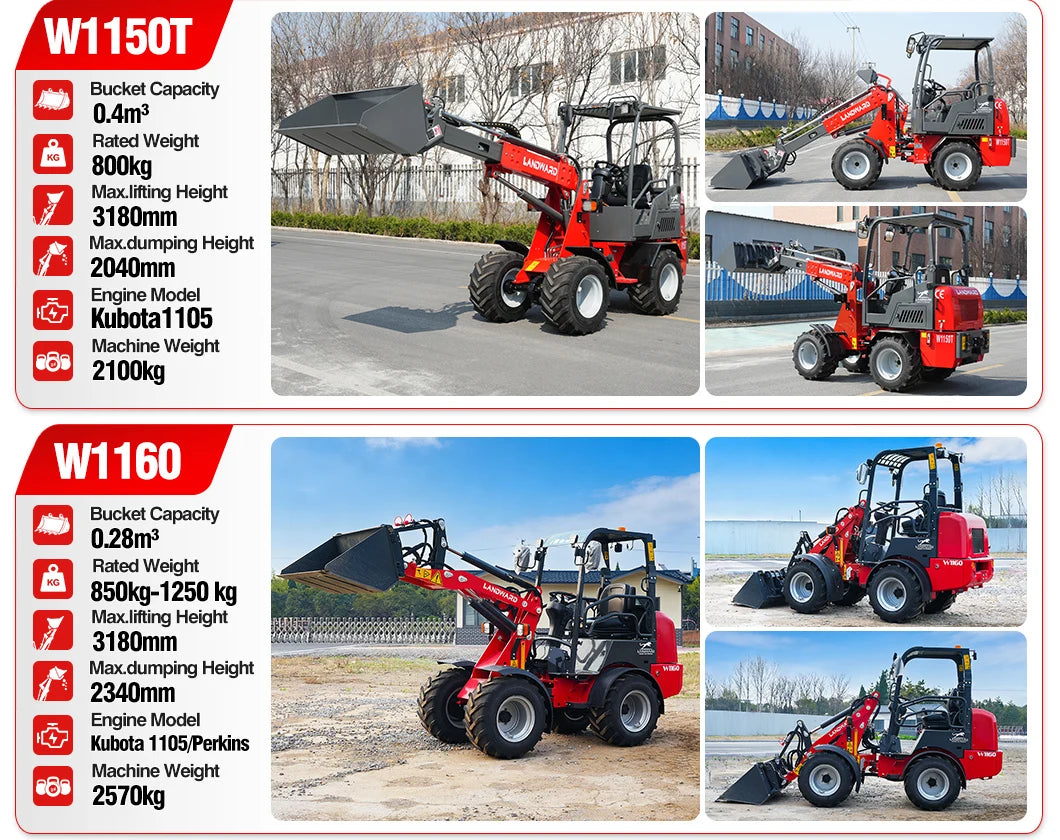

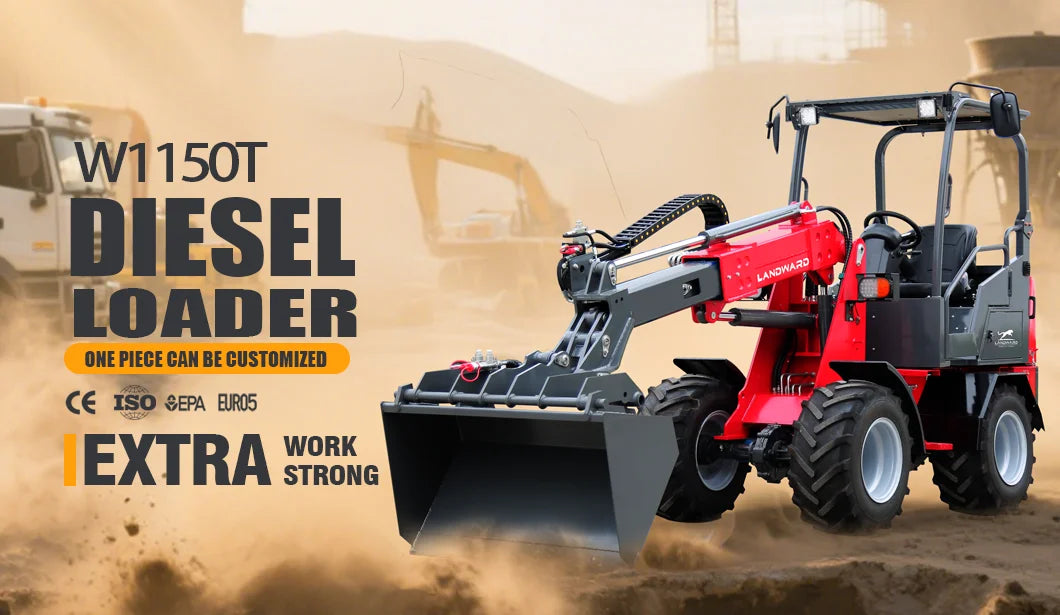

Model Number

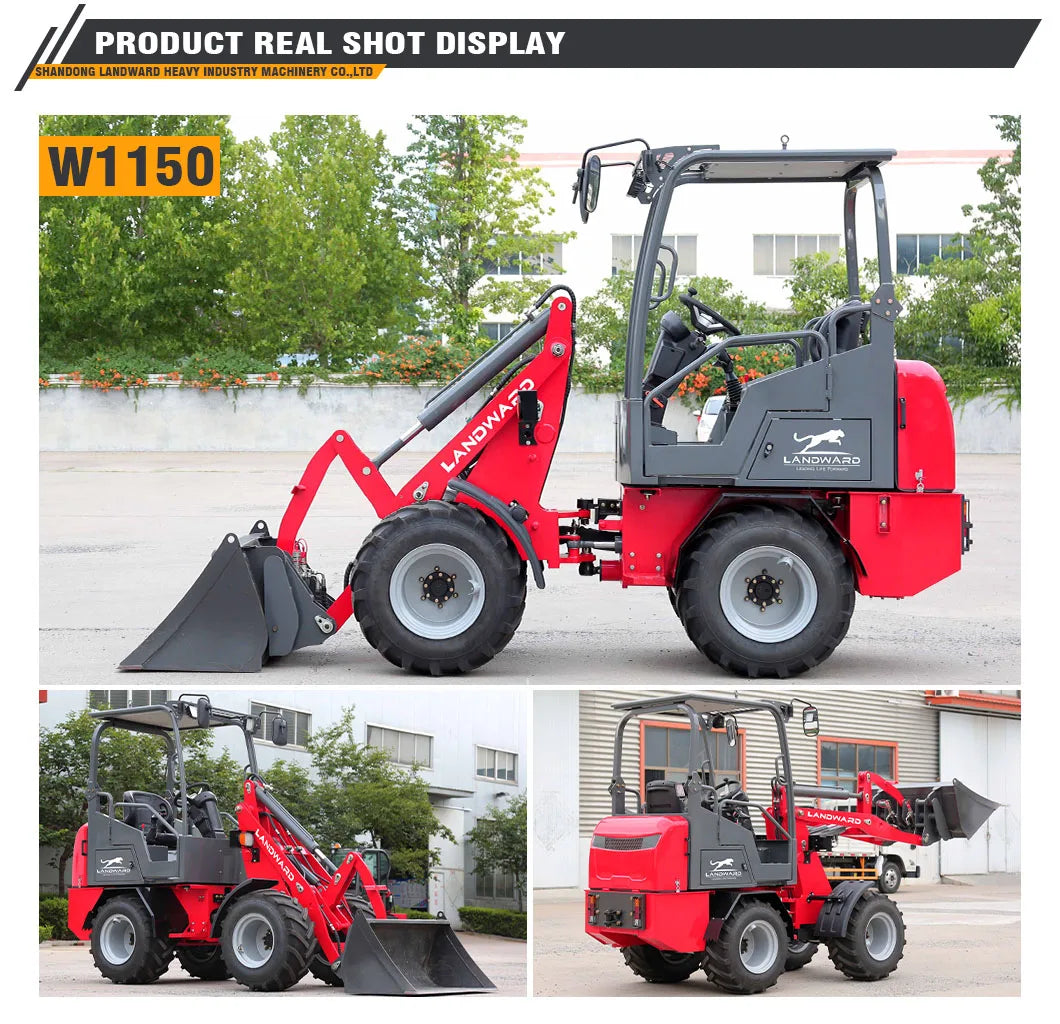

W1150

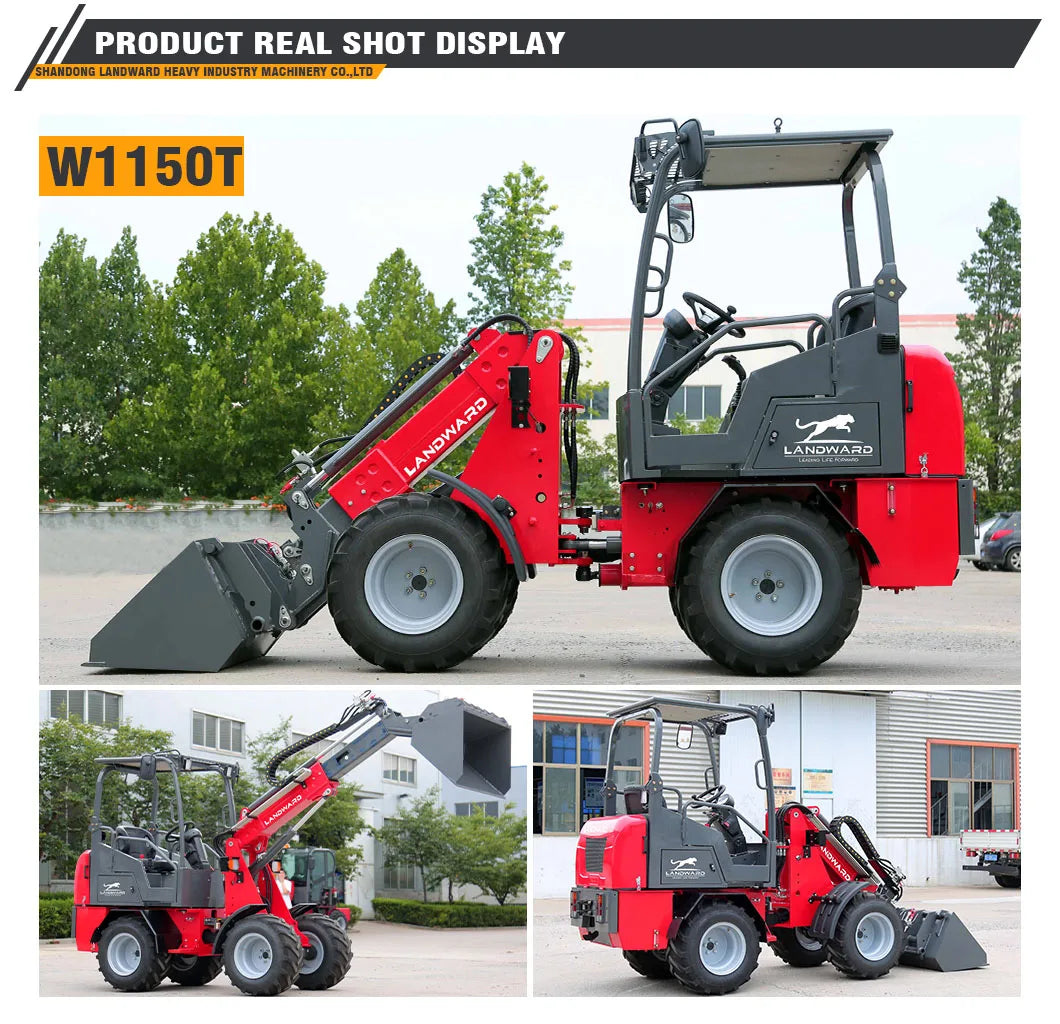

W1150T

Performance

Rated Load

0.8T

0.8T

Bucket rated capacity

0.4m³

0.4m³

Dumping height

1780mm

2040mm

(at 45°)

2640mm

Lifting Height

3140mm

3180mm

Dumping Reach

980mm

930/1400mm

Max. Lifting weight

800kg

800kg

Max. Excavation Force

1000kn

1000kn

Max. Grade ability

30°

30°

Max. Turning Angel

30°±1

30°±1

Swing degree of the rear axle

7°

7°

Dimensions. &.Weight

Overall length(Bucket on Ground position)

3840mm

3720mm

Bucket width(overall width)

1160mm

1160mm

Overall Height

2330mm

2330mm

Wheel base

850mm

850mm

Min Ground Clearance

240mm

240mm

Net Weight

1850kg

1850kg

Engine

Engine Model

Kubota1105

Kubota1105

Power

18.2kW

18.2kW

Speed

3000r/min

3000r/min

Tyres

Type

Standard26×1200-12 /Optional 31×15.5-15

working pressure

0.3MPa

Qty

4

Steering System

Type of Steering Hydraulic System

Full Hydraulic Steering System

System Pressure

16MPa

Type of Steering Pump

External Gear Pump

Steering Cylinder Bore

63mm

Qty

1pc

Braking System

Service Brake

Drum Brake

Brake Drum

250mm

Parking Brake

Drum Brake


Distribution Valve

Model

DL10

Type

Triple valve stem

Dumping Cylinder-Bore

Ø80

Lifting Cylinder-Bore

Ø63

Oil Capacity

Hydraulic Oil Tank

30L

Brake Fluid

0.8L

Please note: All our mini excavators are to be customized, please contact our sales to confirm detail information before/after placing your order. You will be treated friendly and sincerely, and you will find that will be very helpful.

Welcome you from faraway come to China and visit us. We will treat you at the most comfortable way and looking forward to doing business together with you.

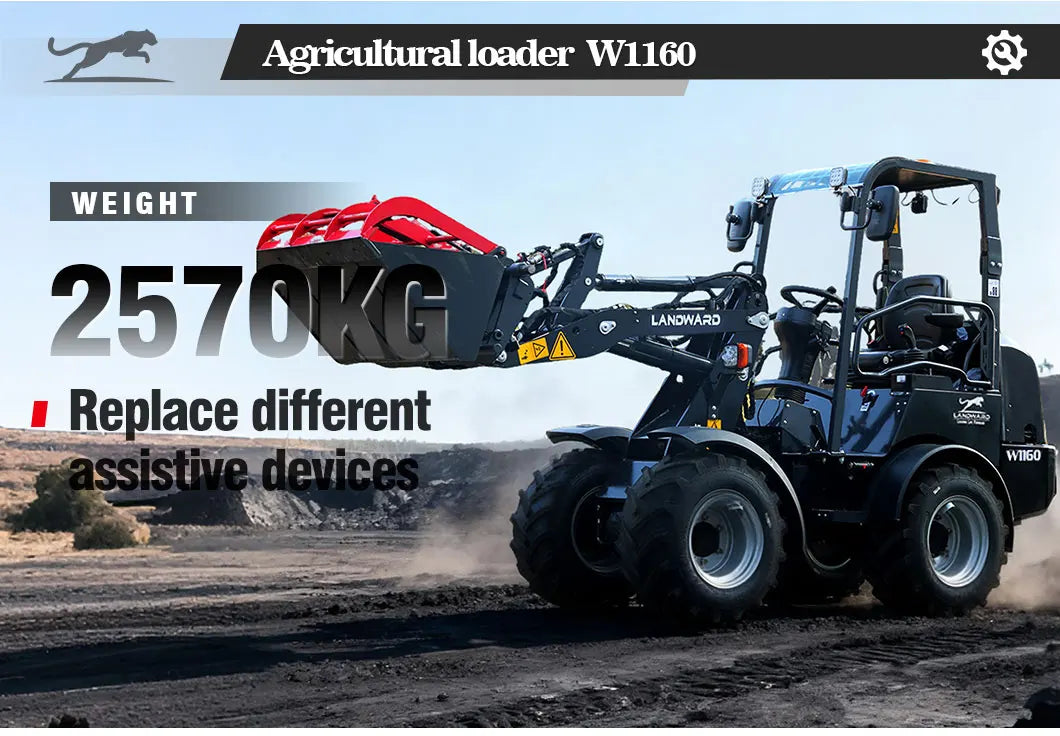

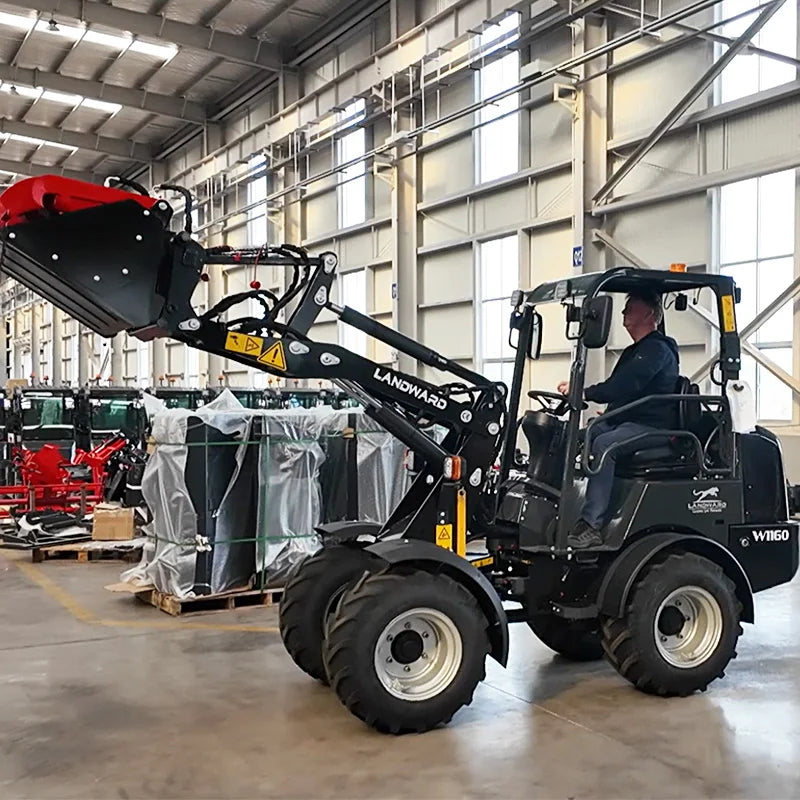

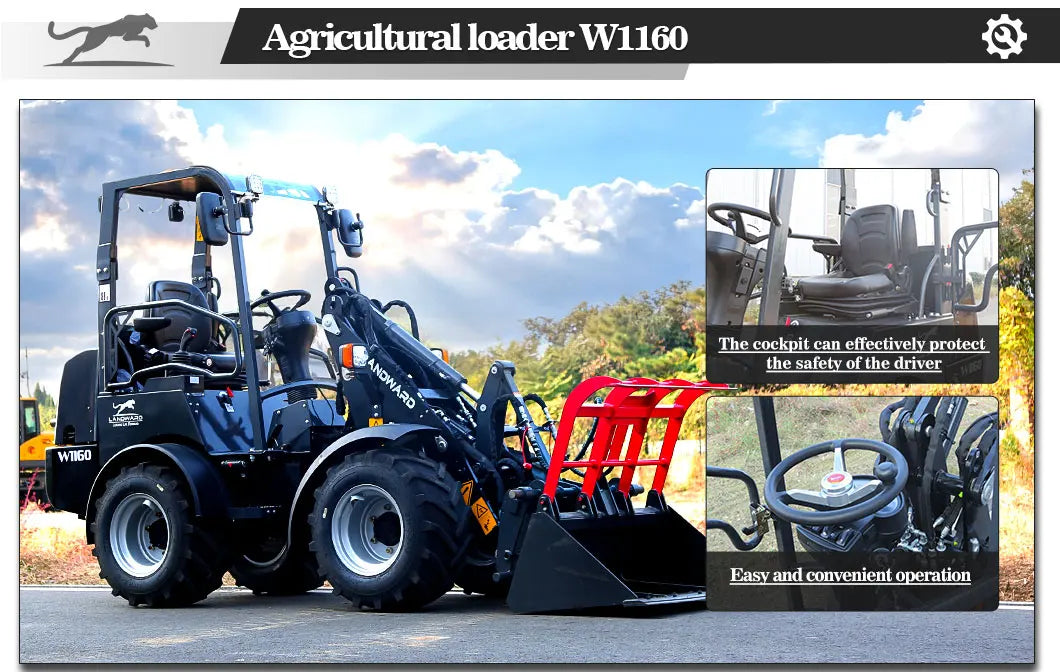

W1160


Standard Configuration

High Configuration

Engine

Kubota 1105 /Perkins

Kubota 1105 /Perkins

Power

18.2Kw /18.4 Kw

18.2Kw/18.4 Kw

Pump(single)

Rexroth plunger pump
Flow: 78LPM
Work Pressure:32MPa

Rexroth plunger pump
Flow: 78LPM
Work Pressure:32MPa

Hydraulic Motor

Double(ZhenJiangdali)

Single(Rexroth)

Valve

Haihong(Domestic)

Walvoil(Italy)
Double floating

High - low speed

Top speed:15 km/h

Top speed:20 km/h(Electronic Control)

Brake

Inch function
(Used to reduce the control hydraulic flow of pump and motor control valves)

Electric handle

Forward and Back buttons

①Forward and Back buttons(Weidmann same style)
②High and low speed

Turn signal

LED work lights

LED work lights

Seats

Safety shut-off sensor(20s)
(Start the neutral switch and parking brake switch)

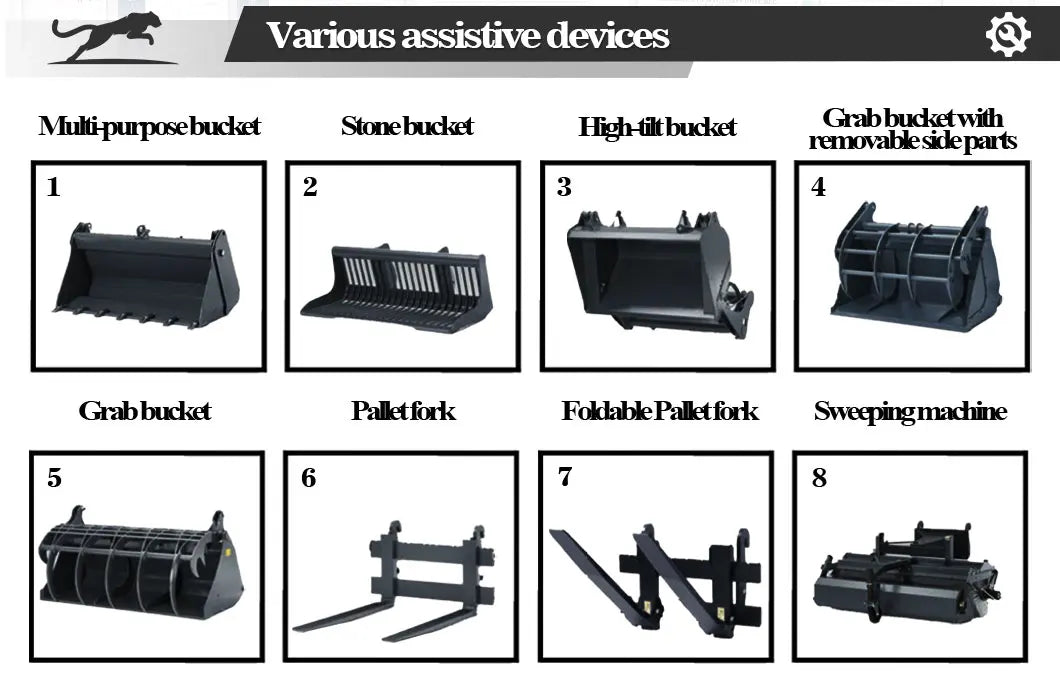

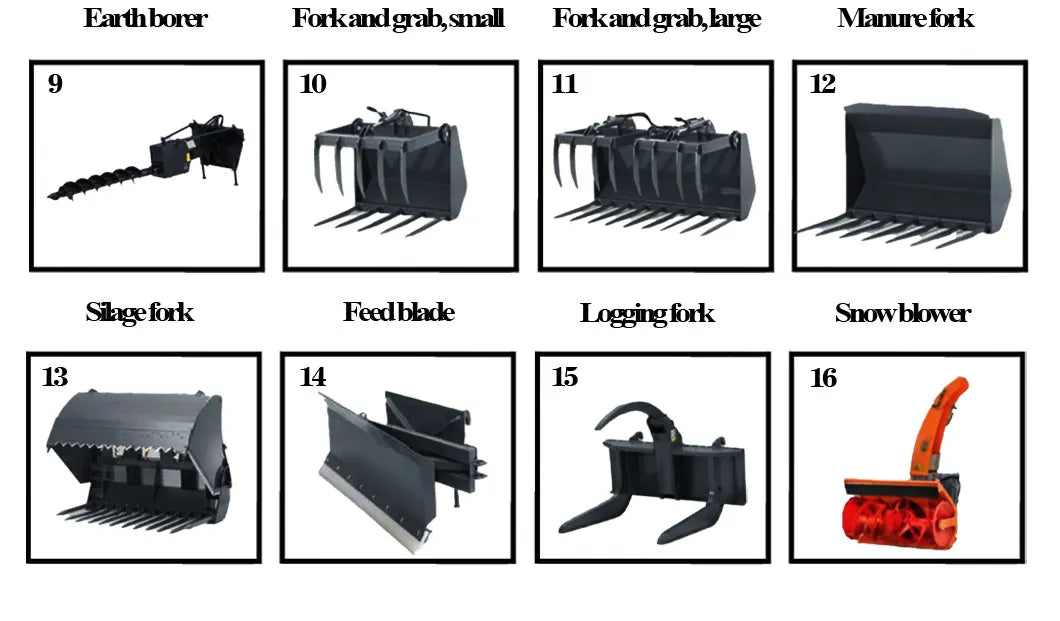

Accessories

Quick coupler (EU hydraulic)
bucket :0.28cbm

Quick coupler (EU hydraulic)
bucket :0.28cbm

Tire

10.0/75-15.3
(31.5x15-15.5,Optional)

Rated lifting capacity

850-1250kg

Hydraulic oil tank

32L

32L

Fuel tank

30L

30L

Traction

15 kN

15kN

Machine weight

2570 kg

2570 kg

Configuration

Cab + Heater + Radio(Optional)

Packing size

3000*1500*2200mm

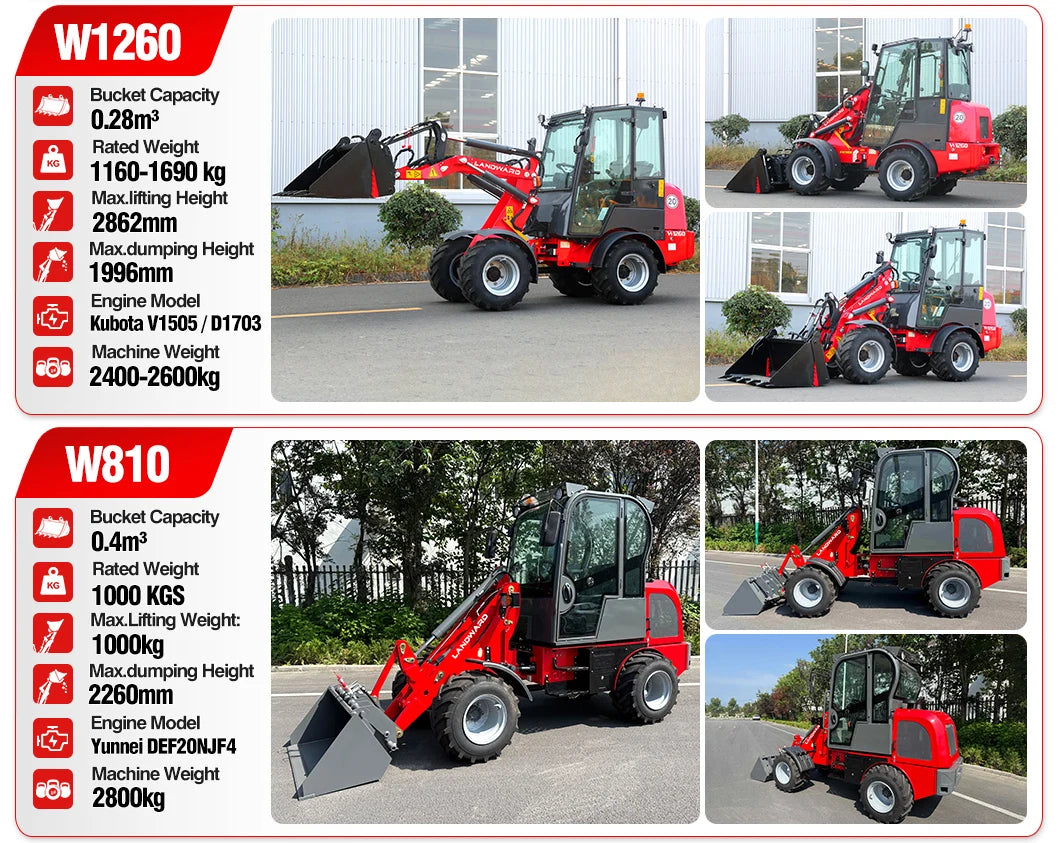

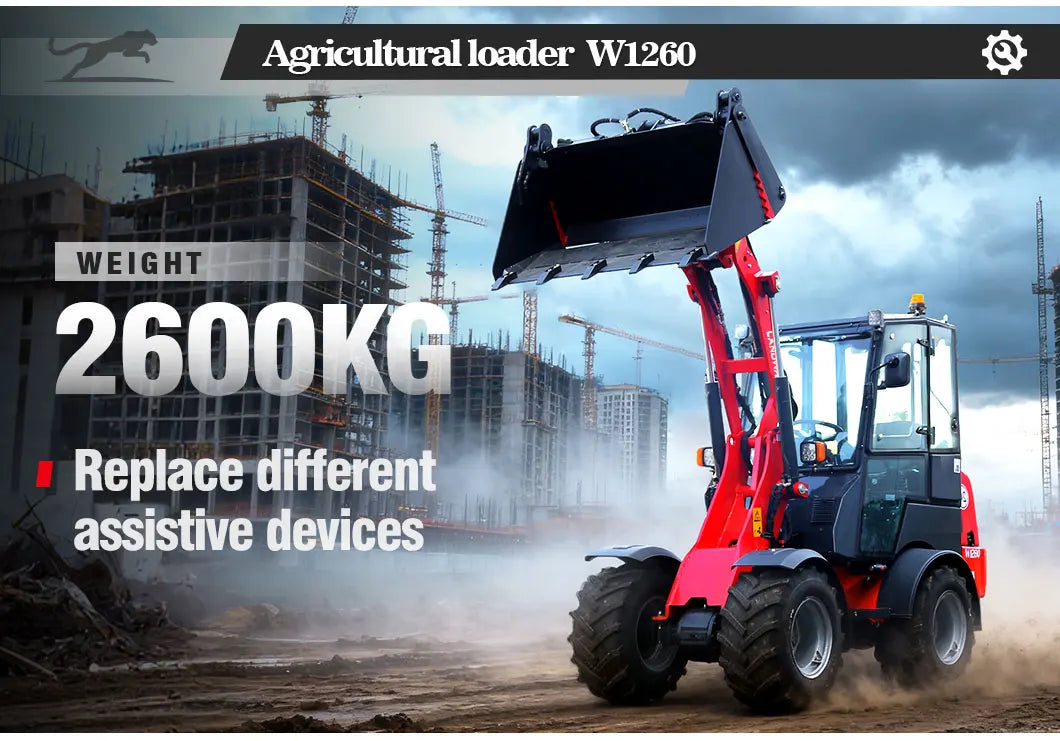

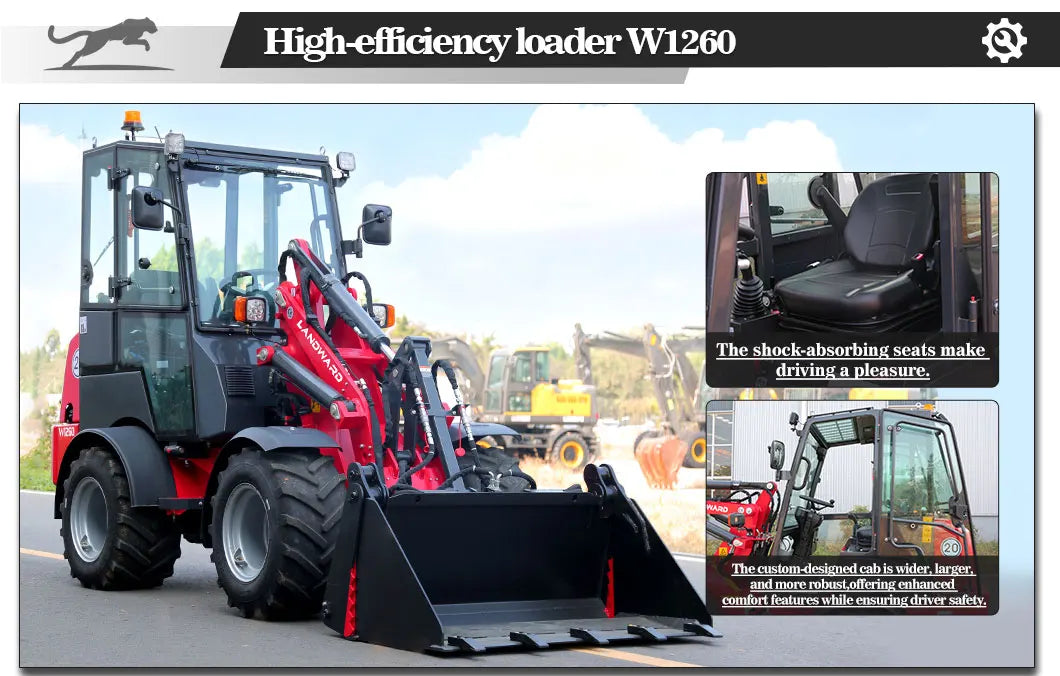

W1260 Compact loader

Engine

Brand/Model

Kubota D1703 or D1505

Type

3 Cylinders or 4 Cylinders Water Cooling

Power Output (kw/HP)

18.4/25

Emissios Standard

Euro V/ Tier 4 Final

Driving System

Type of Drive

Hydrostatic

Drive

Universal Joint Shaft

Travel Speed ( km/h)

0-15

Electrical System

Operating Voltage (V)

12

Battery Capacity (Ah)

60

Alternator Rating (Ah)

40

Hydraulic System

Max.Drive Hydraulics Work Pressure (bar)

320

Max. Drive Hydraulics Discharge Volume (l/min)

72

Max. Work Hydraulics Work Pressure (bar)

225

Max.Work Hydraulics Discharge Volume (l/min)

32

Weight

Operating Weight(kg)

2400-2600

Tipping Load with Bucket--Machine Straight (kg)

1160-1690

Tipping Load with Bucket--Machine Pivoted(kg)

980-1440

Tipping Load with Pallet Fork-Machine Straight(kg)

890-1260

Tipping Load with Pallet Fork--Machine Pivoted(kg)

740-1080

Bucket Capacity (m3)

0.28

Brake System

Operating Brake

Transmission Drum Brake

Parking Brake

Operating and Parking Brake in the Drive Train

Tyre Size

31.5*15-15.5

Dimensions

Total Length

4169mm

Total length without bucket

3368mm

Bucket pivot point (to center of axle)

511.5mm

Wheel base

1613mm

Rear overhang

1079mm

Height with operator cabin

2264mm

Seat Height

1112mm

Working Range

Total working height

3591.5mm

Max.lifting height

2862mm

Load-over height

2455mm

Dumping height

1996mm

Reach(at M)

655mm

Digging depth

173mm

Total width

1250-1350mm

Wheel track

940mm

Min.ground clearance

210mm

Max.radius

3100mm

Inner Radius

1610mm

Articulation angle

43°

Dumping angle

50°

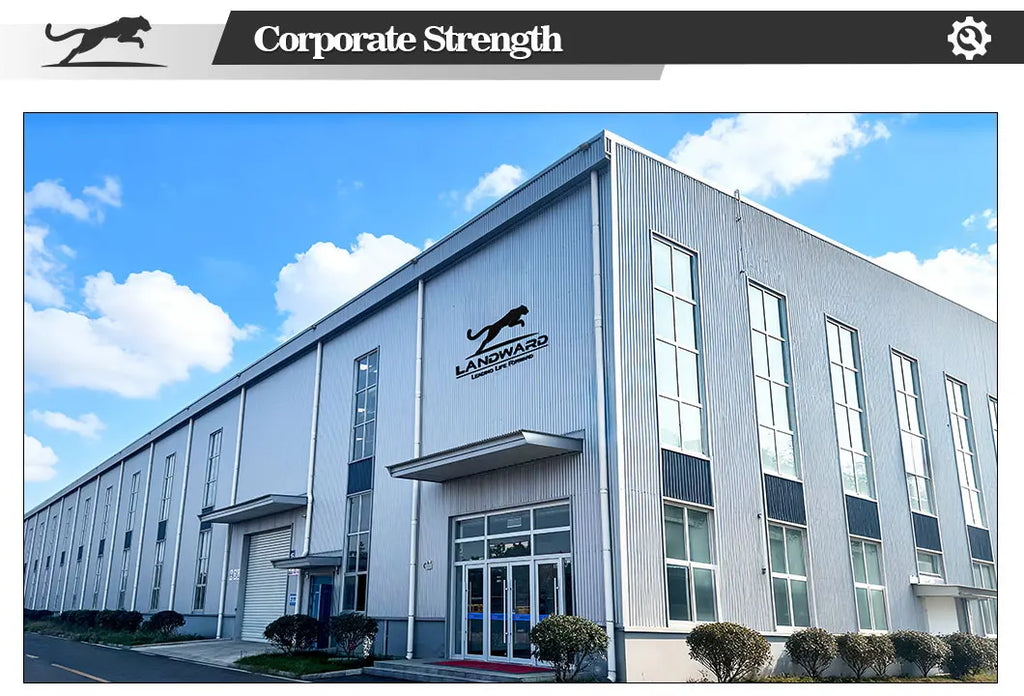

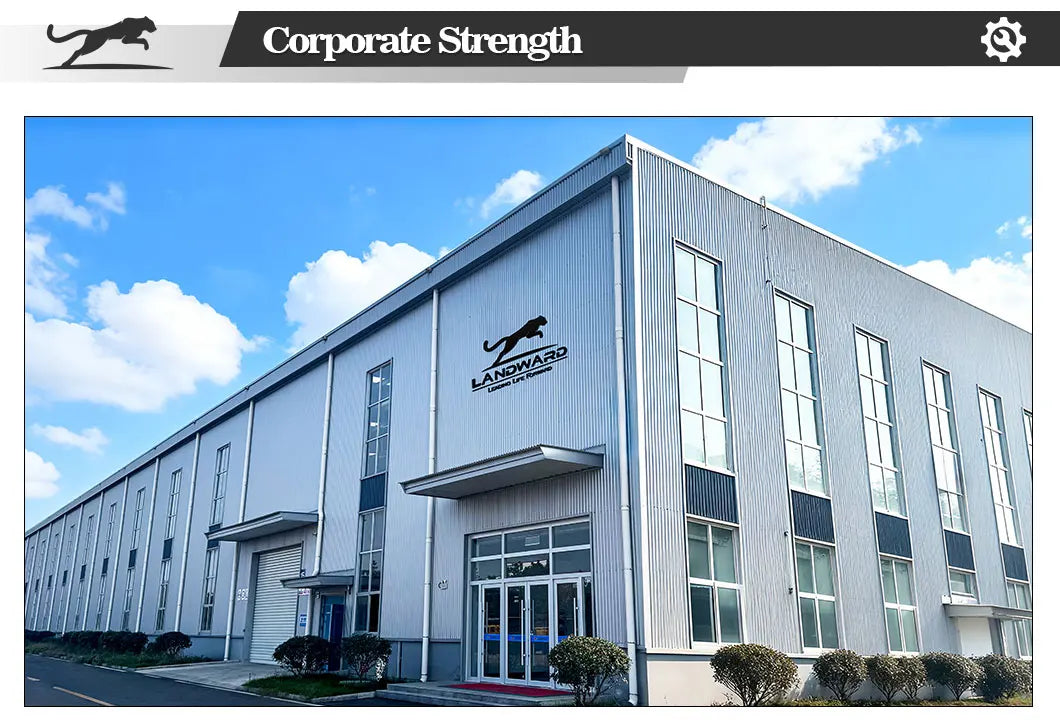

About LANDWARD


The history of LANDWARD development can be tracked back to 1997 as a small Auxiliary Factory(named Jimo Iron works in a small village) which taking the steel plate cutting.


In the early 21th century, Landward shifted towards expanding into new business to welding and produce structural parts for loader factories.


In 2009, Landward started the research and development of dumpers, and in the next year we began to produce forklifts. We were posed many challenges but also created opportunities for innovation and adaption.


In 2018, we engaged in small machine, like small excavators, mini dumpers, mini wood chippers at the time when the Euro market begin to accept Chinese mini machine.

On Jan.5, 2024, the company has been renamed to its current name-Landward(Shandong) HI Group, aimed at developing engineering equipment to the world.


Today, Landward continue to evolve in response to technology, globalization, and leading customers’ life forward. The development of artificial intelligence, renewable energy and e-commerce are shaping the future of Landward, creating new opportunities and challenges. We engaged on playing a vital role in driving the quality growth and improving customers’ life easier.

Welcome dealers from the world for sharing a similar vision to generate value for the customers.


Orders not confirmed by customer service will not be shipped.
