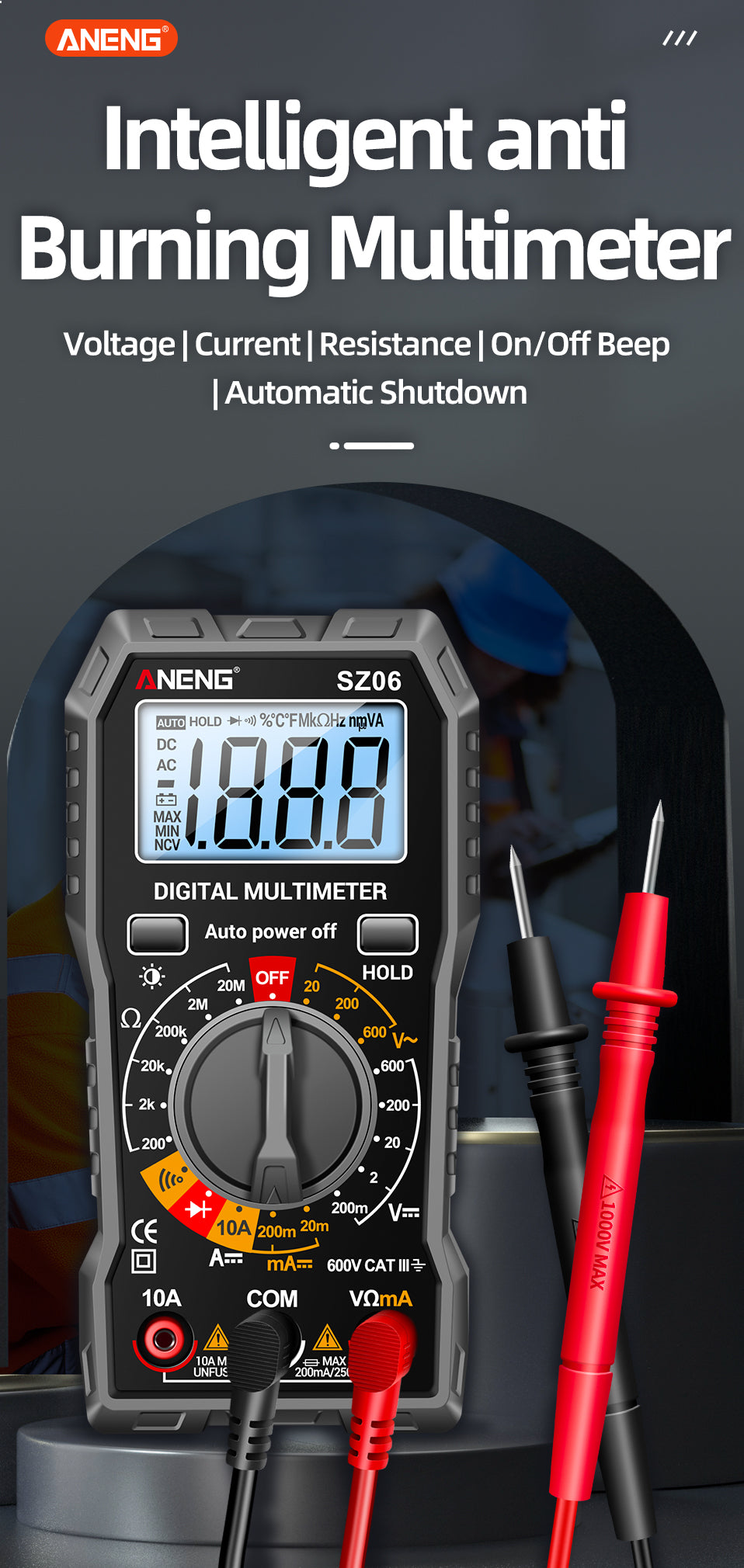

Digital Multimeter ANENG SZ06 AC/DC Ammeter 1999 Counts Multitester 600V Voltmeter Multimetr Voltage Resistance Meter Diode Tool
Digital Multimeter ANENG SZ06 AC/DC Ammeter 1999 Counts Multitester 600V Voltmeter Multimetr Voltage Resistance Meter Diode Tool
SPECIFICATIONS
AC Current: /
AC Voltage: Ac voltage:20V-600V,20V-600V
AC/DC Voltage: Yes
Battery: No. 5 AA battery*2 (not included, you need to bring your own)
Battery Included: no
Brand Name: ANENG
Certification: CE
Choice: yes
DC Current: 20mA~10A
DC Voltage: 200mV-600V,200mV-600V
DIY Supplies: Electrical
Display Type: Digital Display
High-concerned chemical: none
Is Smart Device: no
Maximum count: 2000
Measuring Capacitance Range: /
Measuring Inductance Range: /
Measuring Resistance Range: 0Ohm~20MOhm
Model Number: SZ06 Multimeter,Digital Multimeter
Operating Mode: Manual Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
Semi-finishedproduct: No
Digital Multimeter ANENG SZ06 AC/DC Ammeter 1999 Counts Multitester 600V Voltmeter Multimetr Voltage Resistance Meter Diode Tools

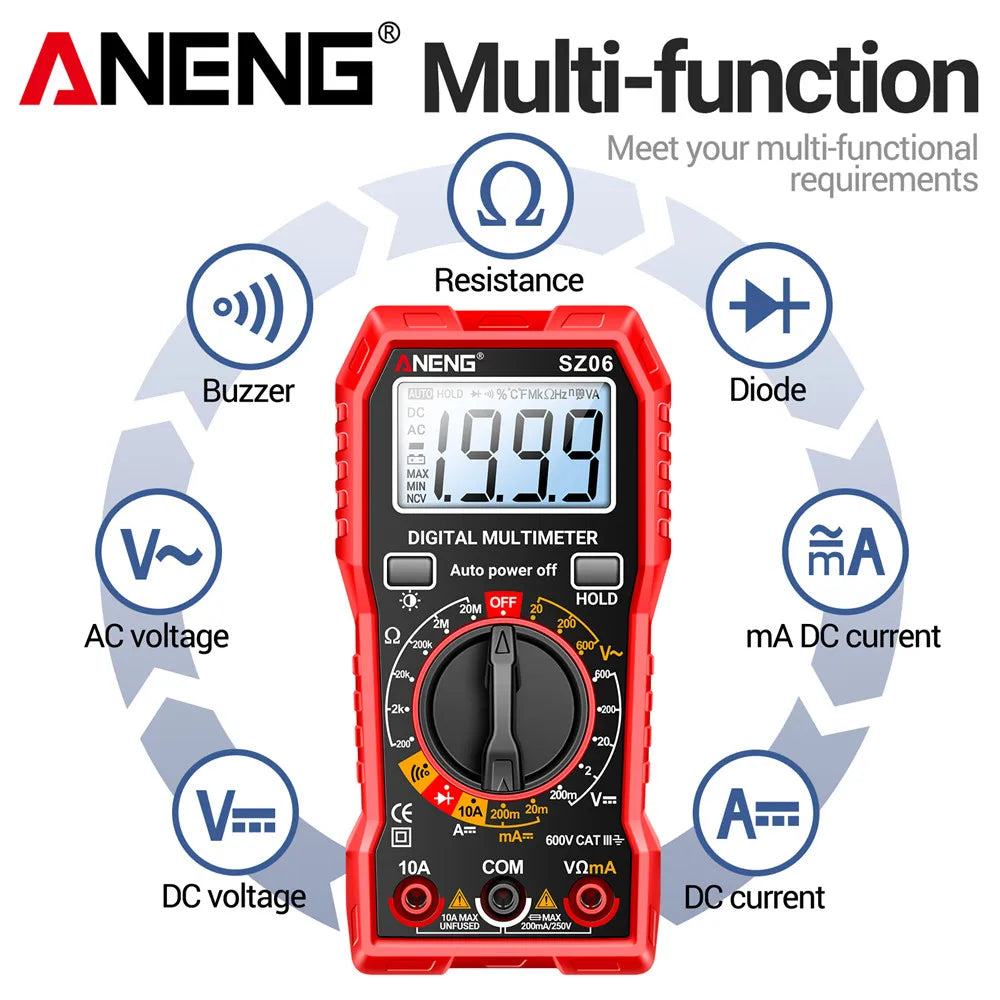

A.Overview:
Automatic selection of measuring function and range.
Full range oveload protection.

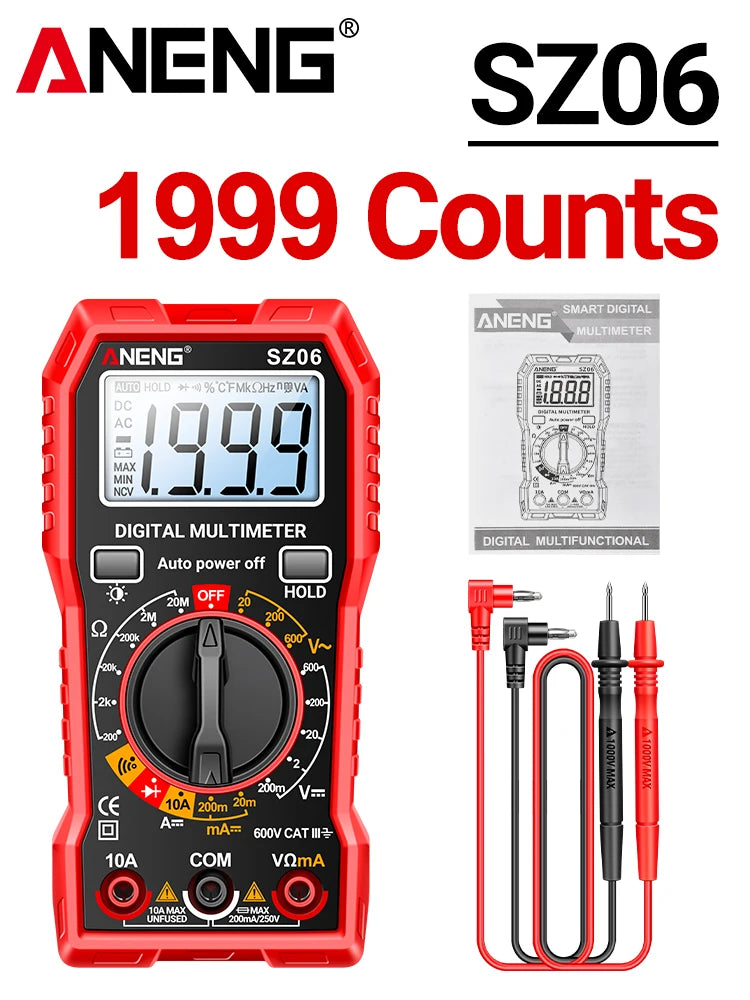

Max. display value:SZ06 2000 digits

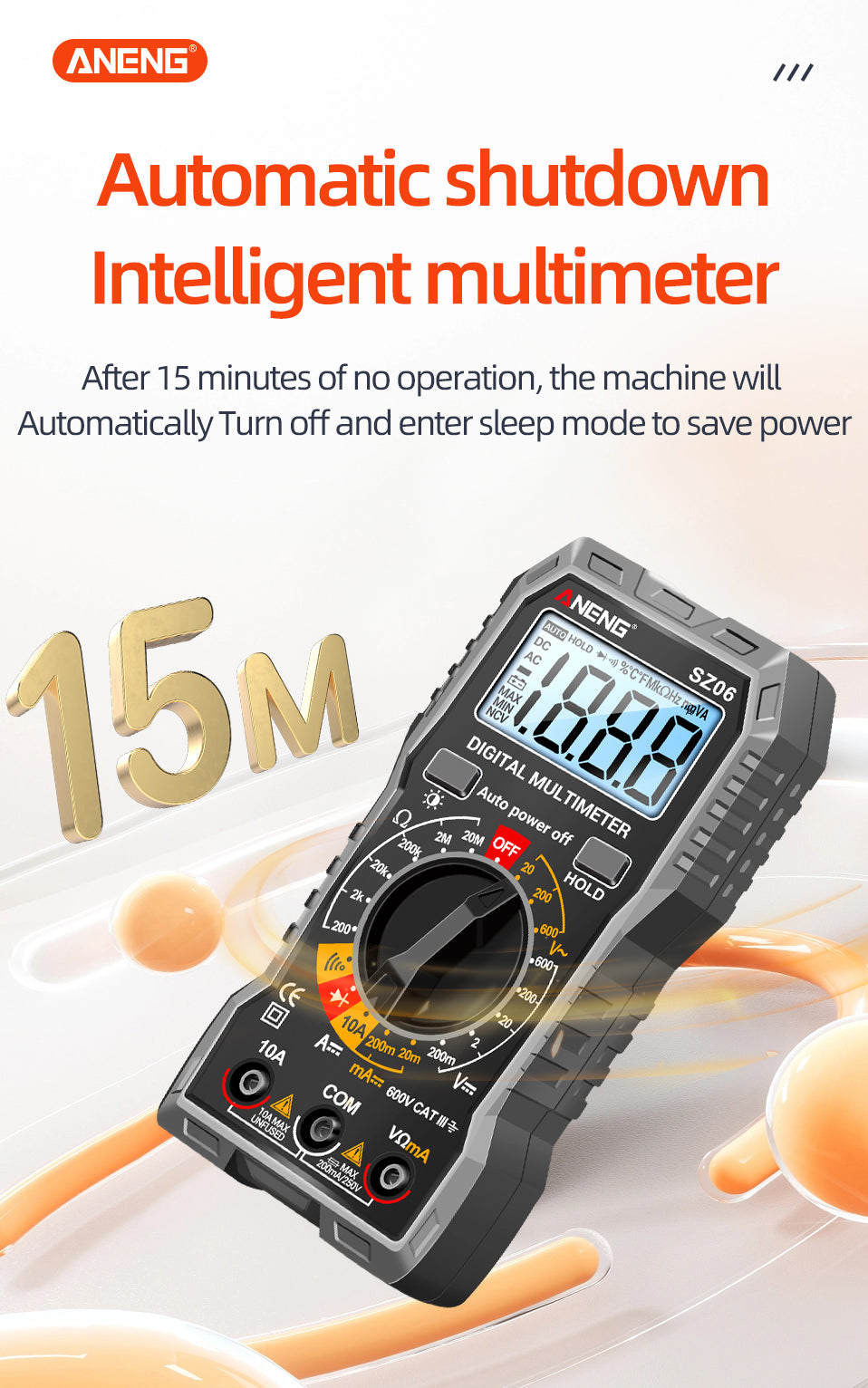

Automatic shut down time:15 minutes
Sampling time: about 3 times/second

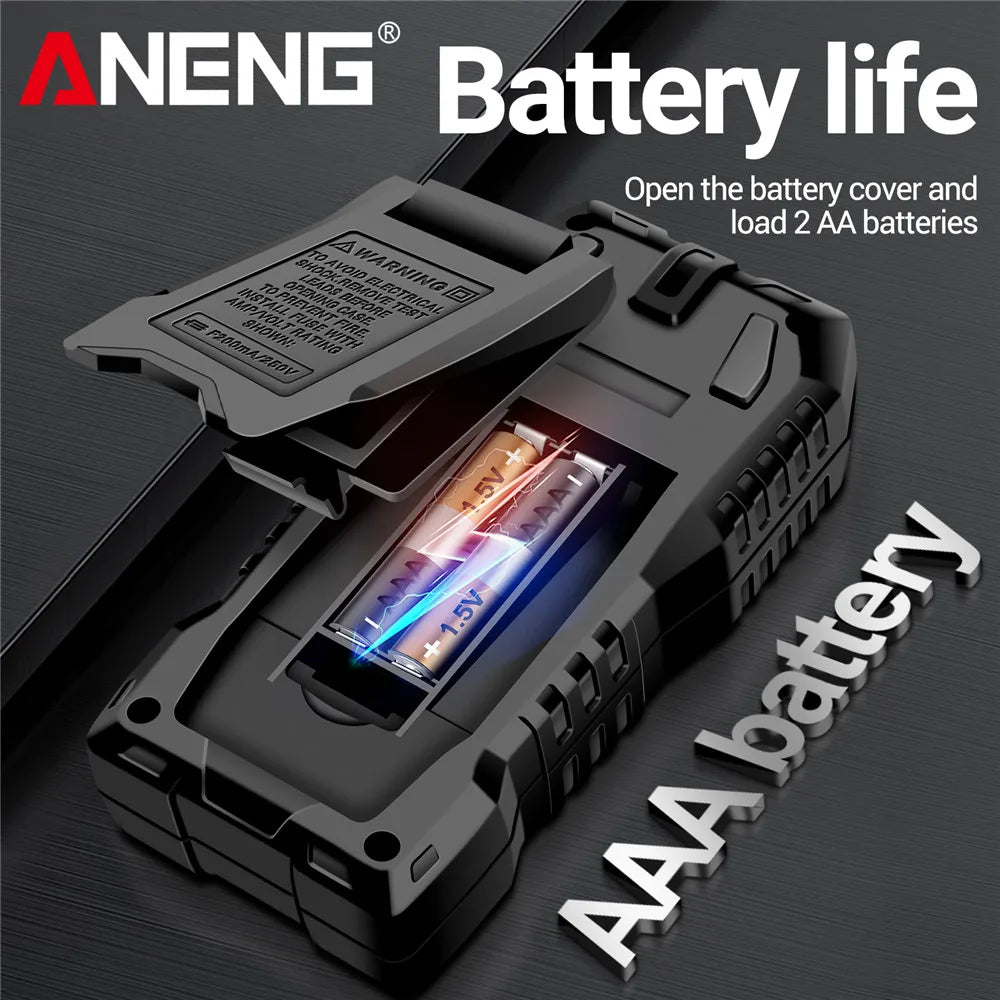

power supply:2*1.5V AAA Battery (Ship without battery)
SZ06:The max voltage between the measuring end and the ground is 600V DC or 600V AC.
B.Specification:

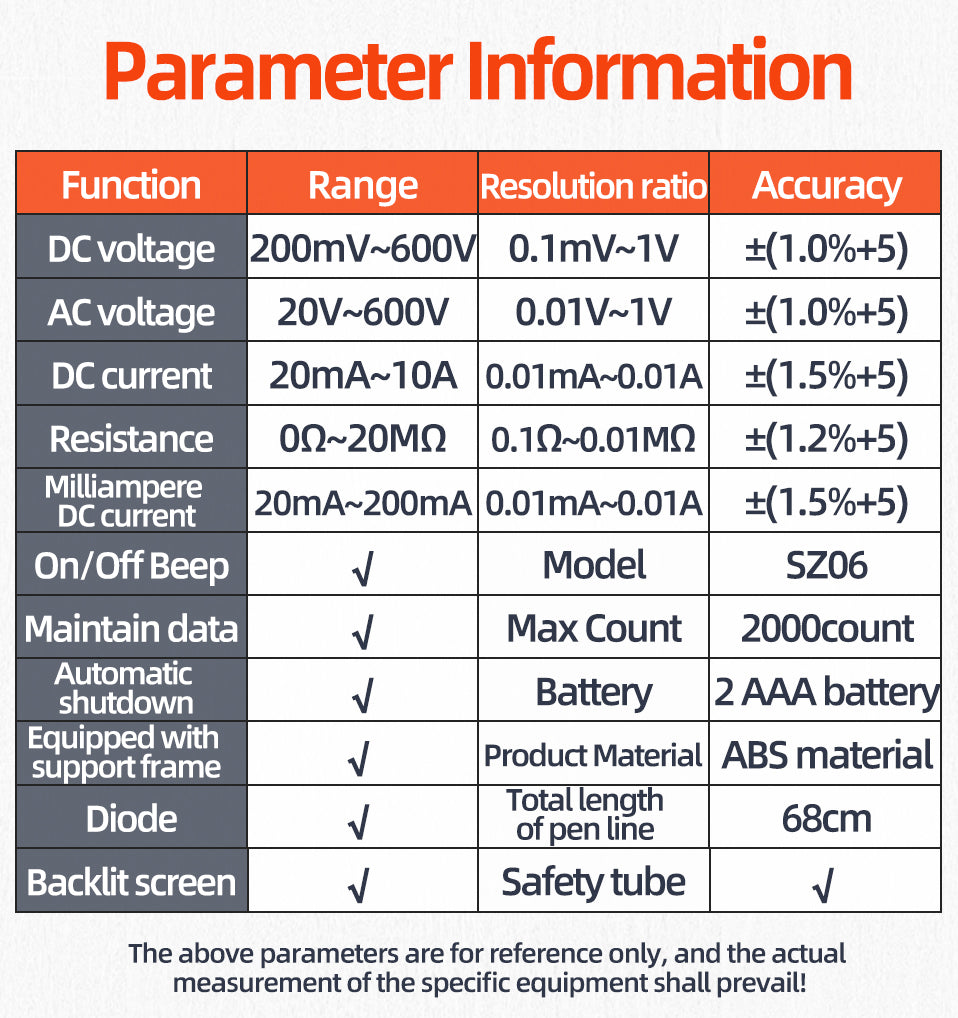

SZ06 Parameter Information | |||
Function |
Range |
Resolution ratio |
Accuracy |

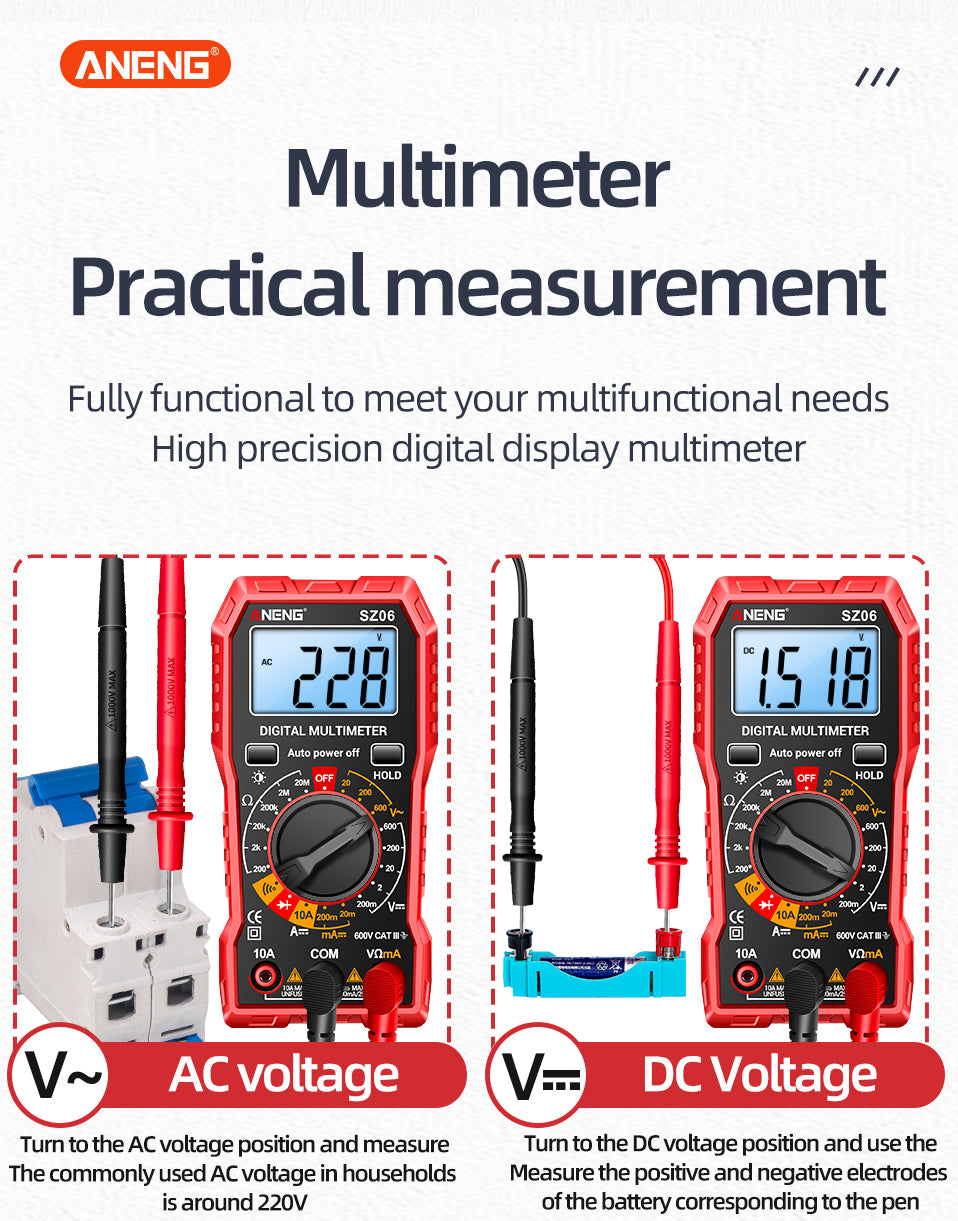

DC voltage |
200mV~600V |
0.1mV~1V |
±(1.0%+5) |

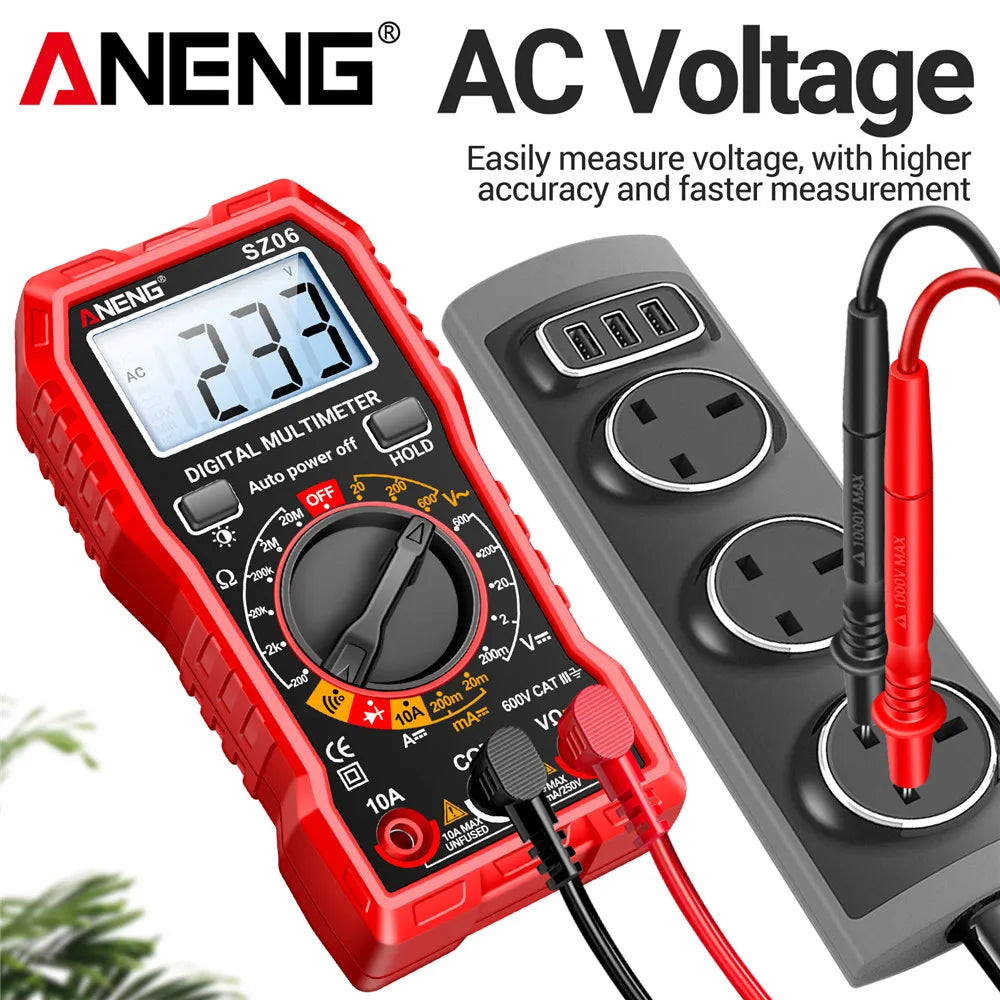

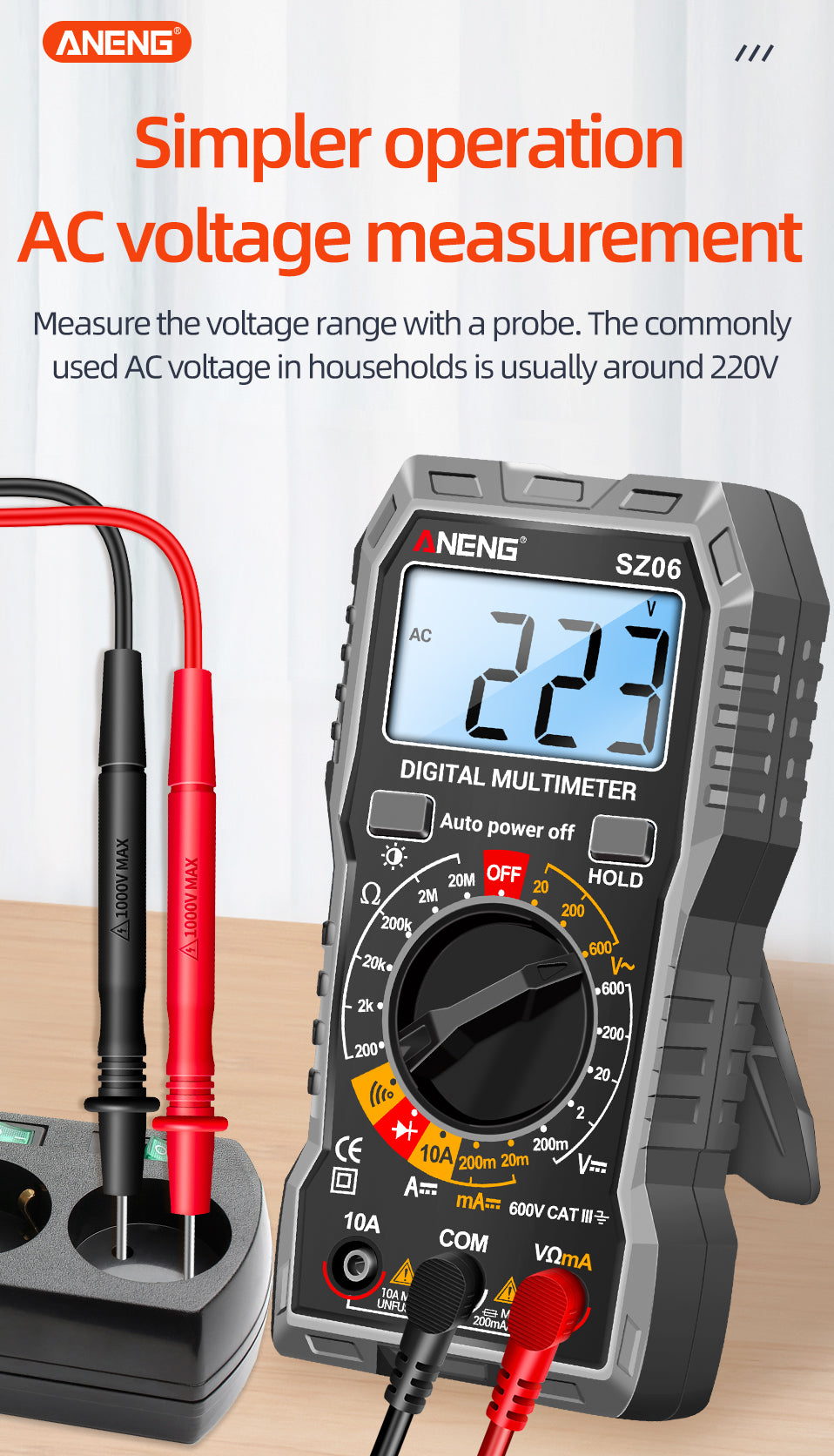

AC voltage |
20V~600V |
0.01V~1V |
±(1.0%+5) |

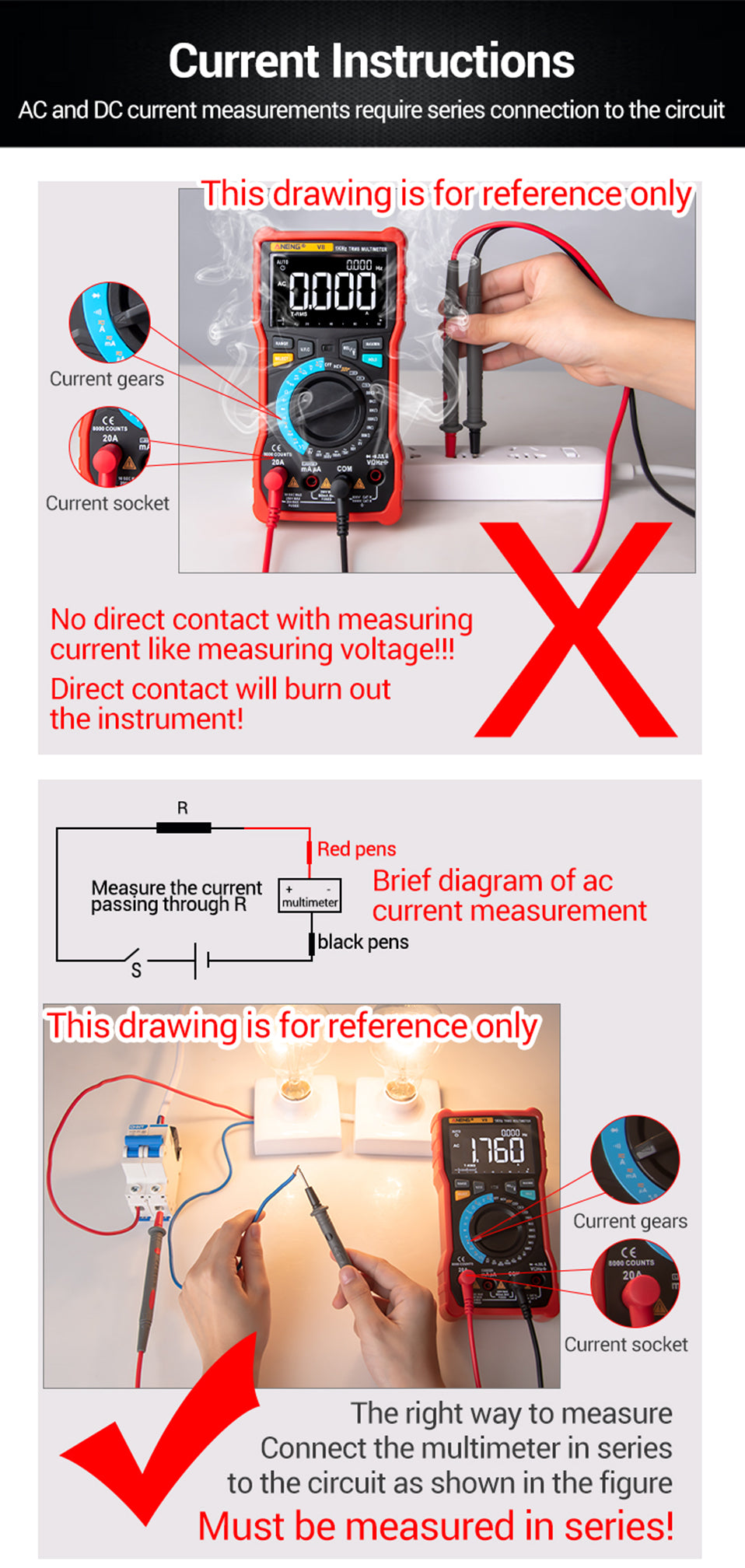

DC current |
20mA~10A |
0.01mA~0.01A |
±(1.5%+5) |
Resistance |
0Ω~20MΩ |
0.1Ω~0.01MΩ |
±(1.2%+5) |
Milliampere |
20mA~200mA |
0.01mA~0.01A |
±(1.5%+5) |

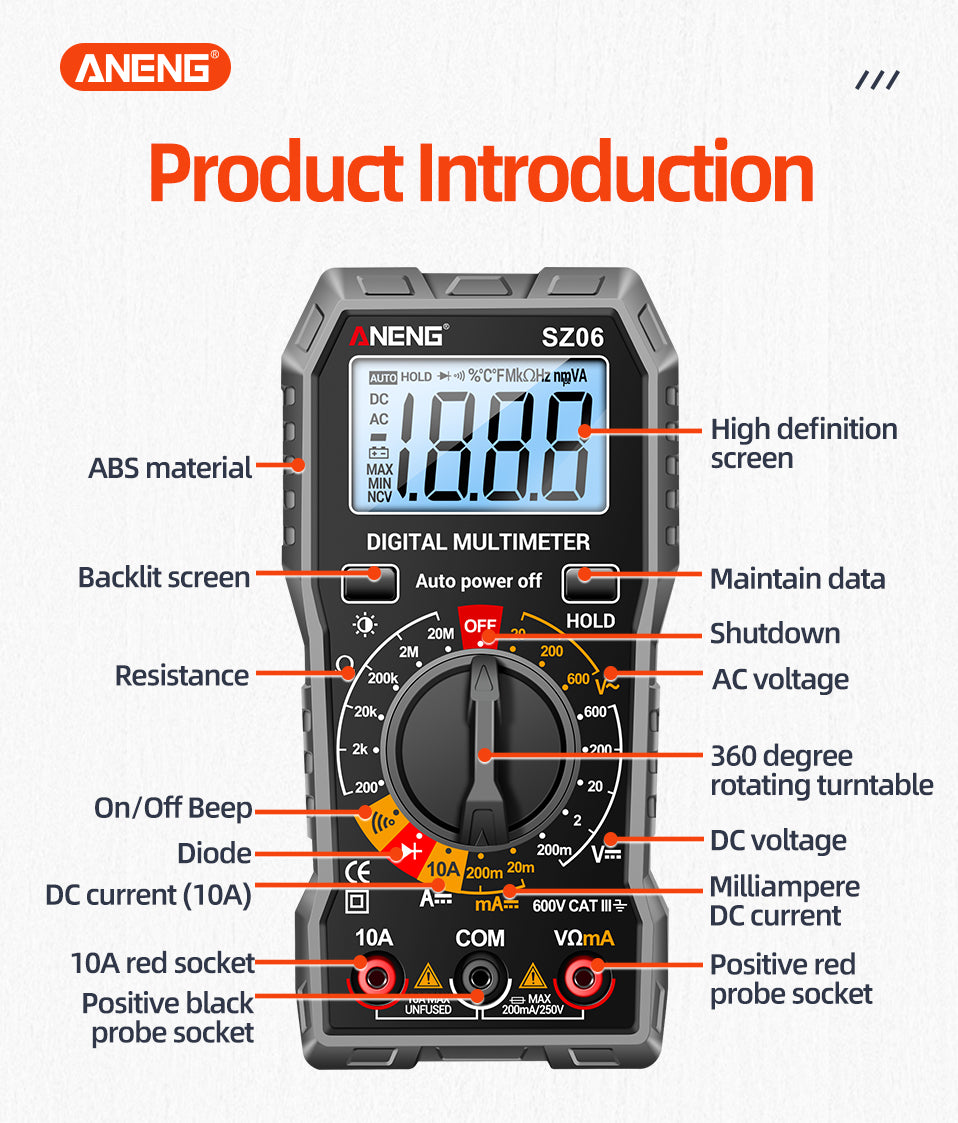

On/Off Beep |
√ |
Model |
SZ06 |
Maintain data |
√ |
Max Count |
2000 count |
Automatic shutdown |
√ |
Battery |
2 AAA battery |
Equipped with |
√ |
Product Material |
ABS material |
Diode |
√ |
Total length of pen line |
68 cm |

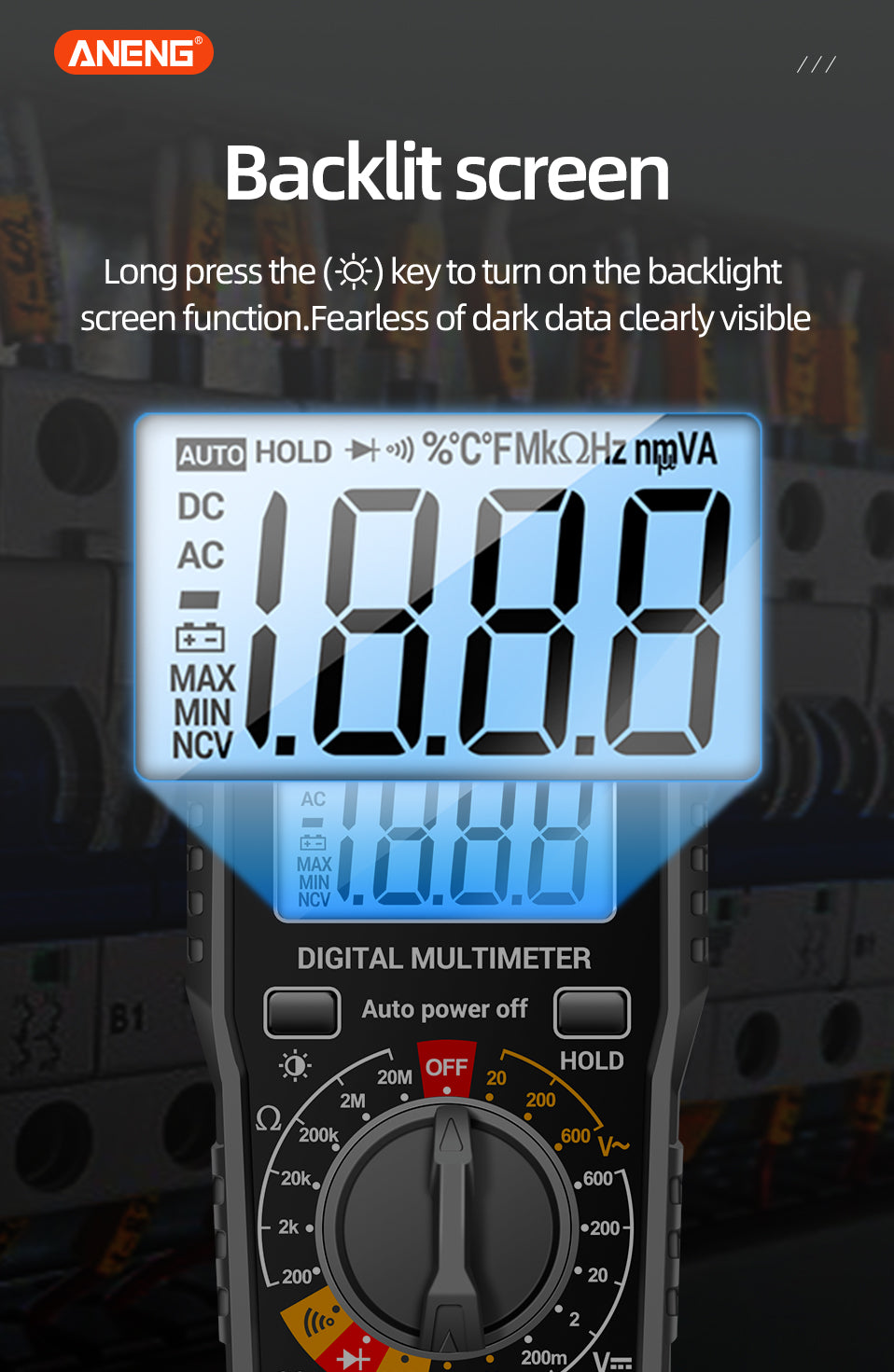

Backlit screen |
√ |
Safety tube |
√ |
C.Package Include:
According to your choice
