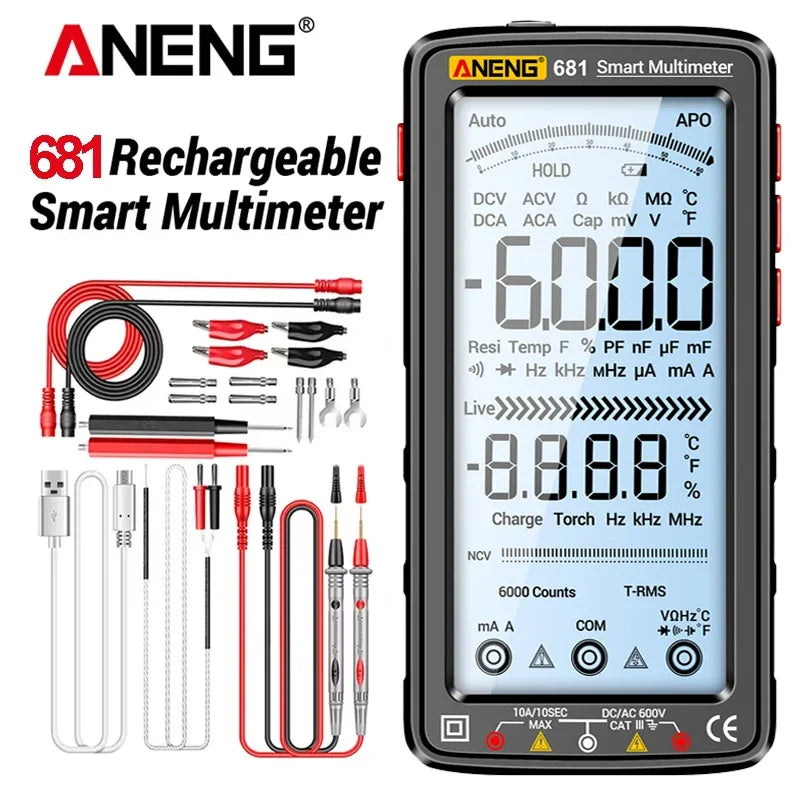

ANENG 681 Smart Digital Multimeter Rechargable AC/DC Voltage Non-contact Voltage Tester Meter LCD Screen Current Tester Tools
ANENG 681 Smart Digital Multimeter Rechargable AC/DC Voltage Non-contact Voltage Tester Meter LCD Screen Current Tester Tools
SPECIFICATIONS
AC Current: 0~10A
AC Voltage: 0~750V
Battery Included: Yes
Brand Name: ANENG
Choice: yes
DC Current: 0~10A
DC Voltage: 0~1000V
DIY Supplies: Electrical
Display Type: Digital Display
High-concerned chemical: none
Measuring Capacitance Range: 0nF~100mF
Measuring Resistance Range: 0Ohm~60MOhm
Model Number: ANENG 681 Digital Multimeter
Operating Mode: Auto Range
Origin: Mainland China
Semi-finishedproduct: No

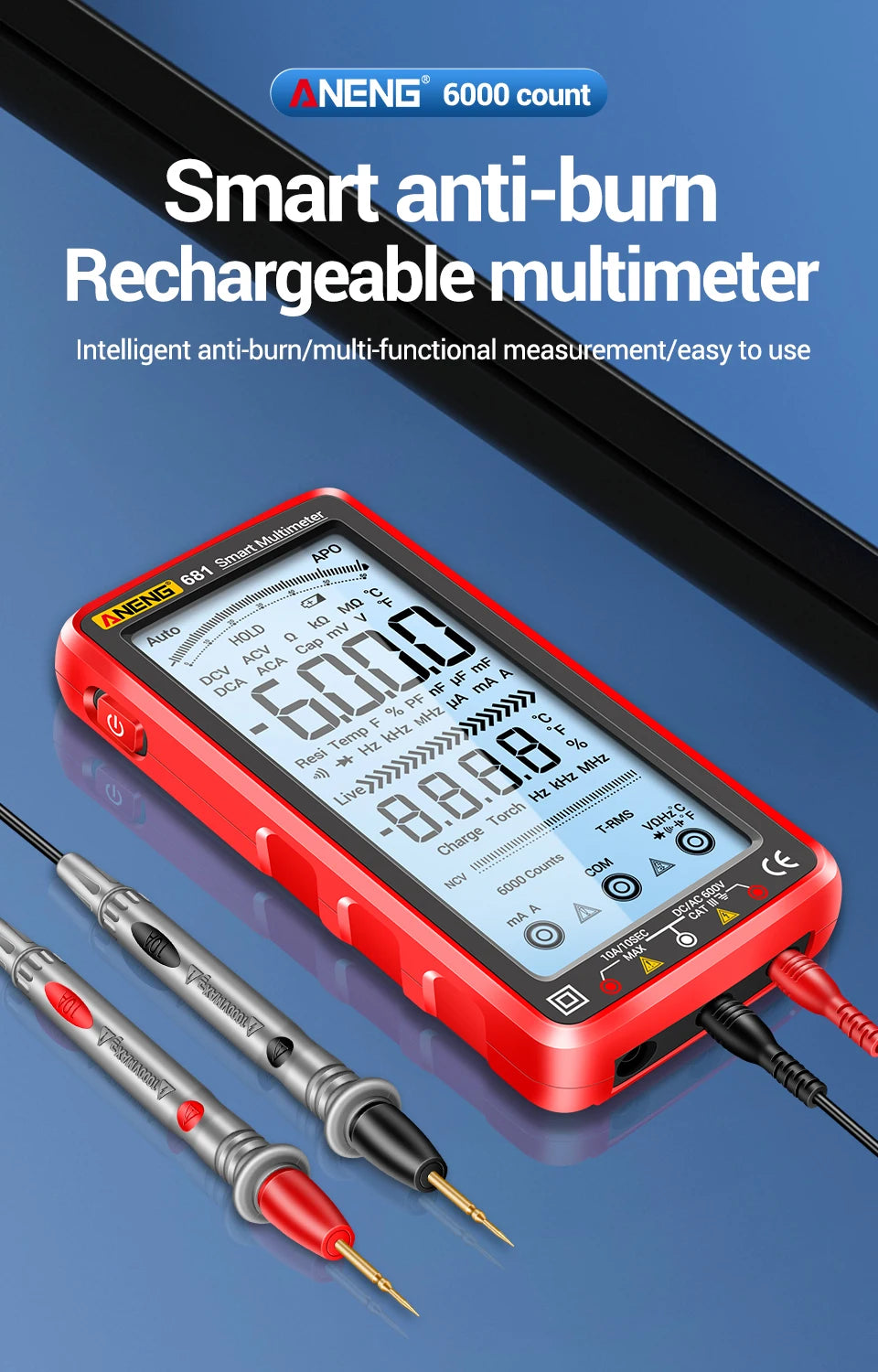

ANENG 681 Rechargable Digital Professional Multimeter Non-contact Voltage Tester AC/DC Voltage Meter LCD Screen Current Tester
Description:

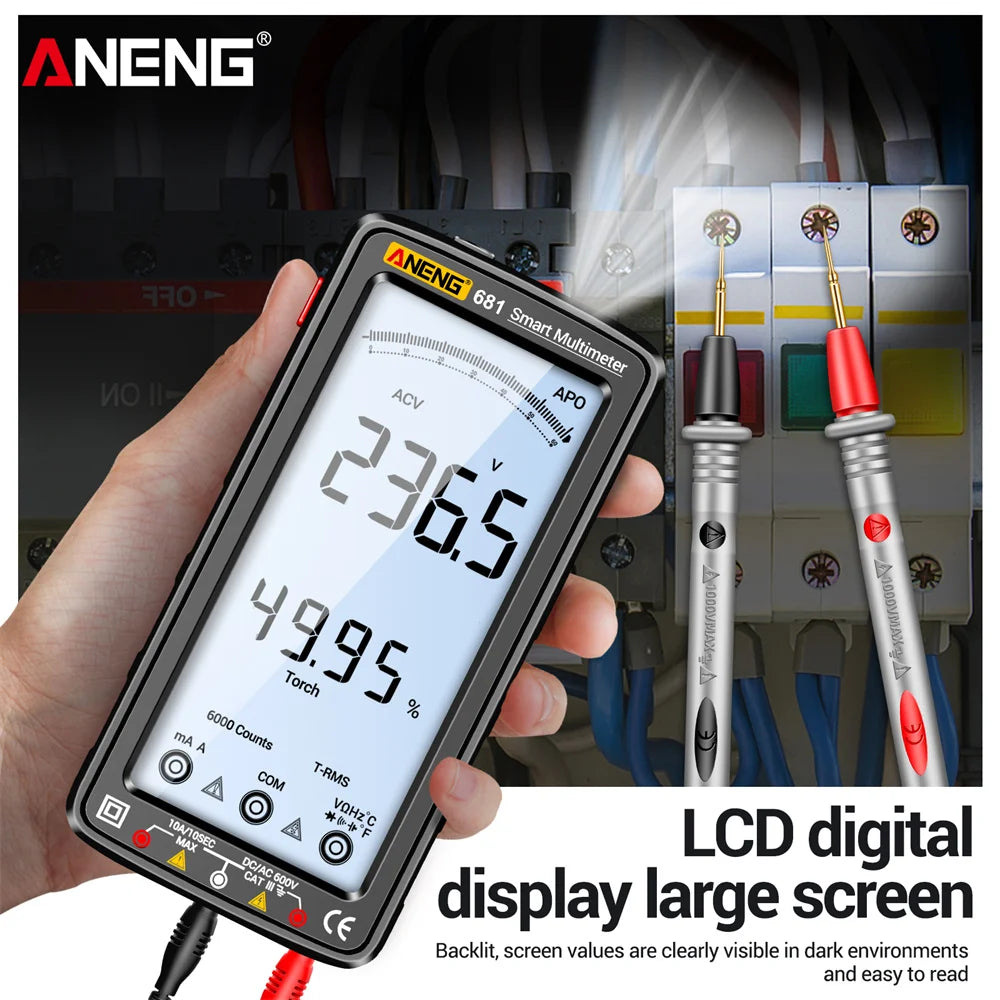

This product is a 3 5/6 digital multimeter with stable performance and reliable quality. The meter adopts LCD display screen with analog bar display.
681 is a 6000 count pocket type true effective value automatic scanning digital meter.
681 automatically recognizes and measures according to the different input voltage/current/resistance/etc. signals.
681 has the characteristics of stable performance, high precision and clear reading.
681 also has additional convenient functions of flashlight test.
681 is an ideal tool and instrument suitable for factories, teaching and electronic enthusiasts.
Feature:

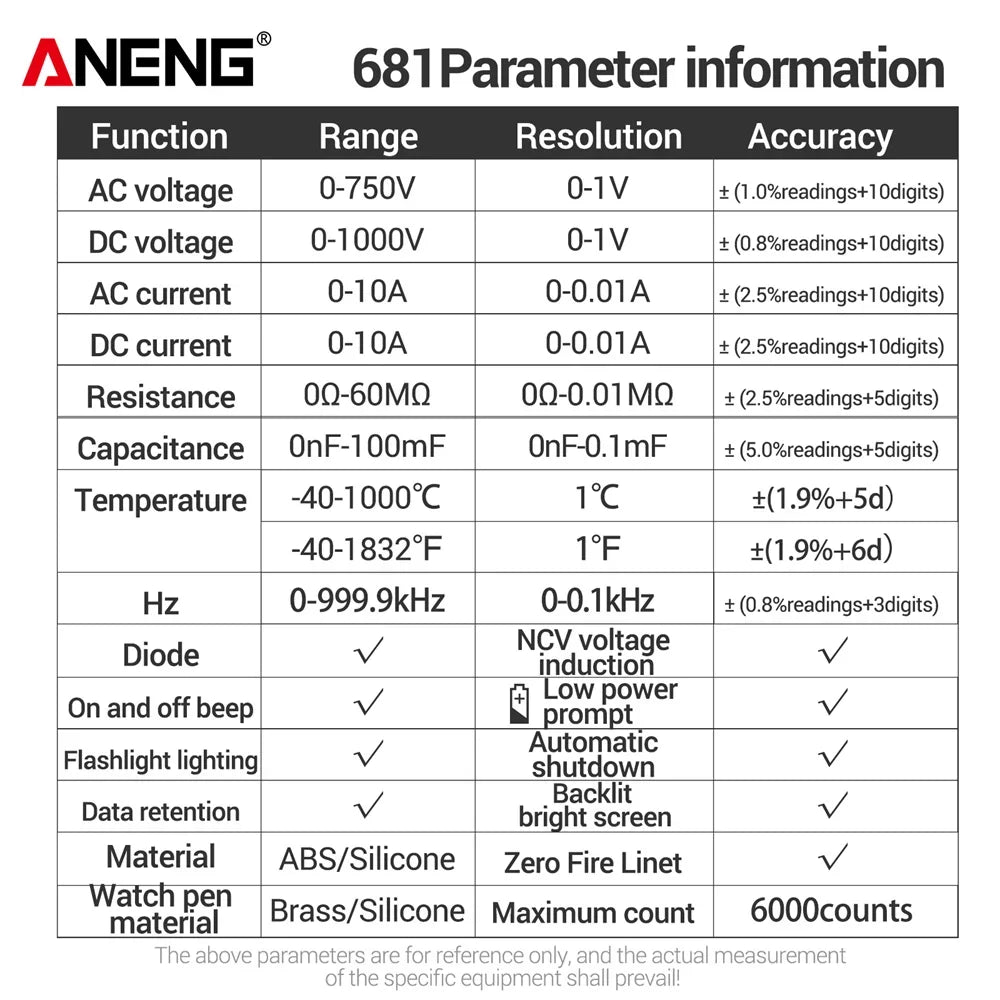

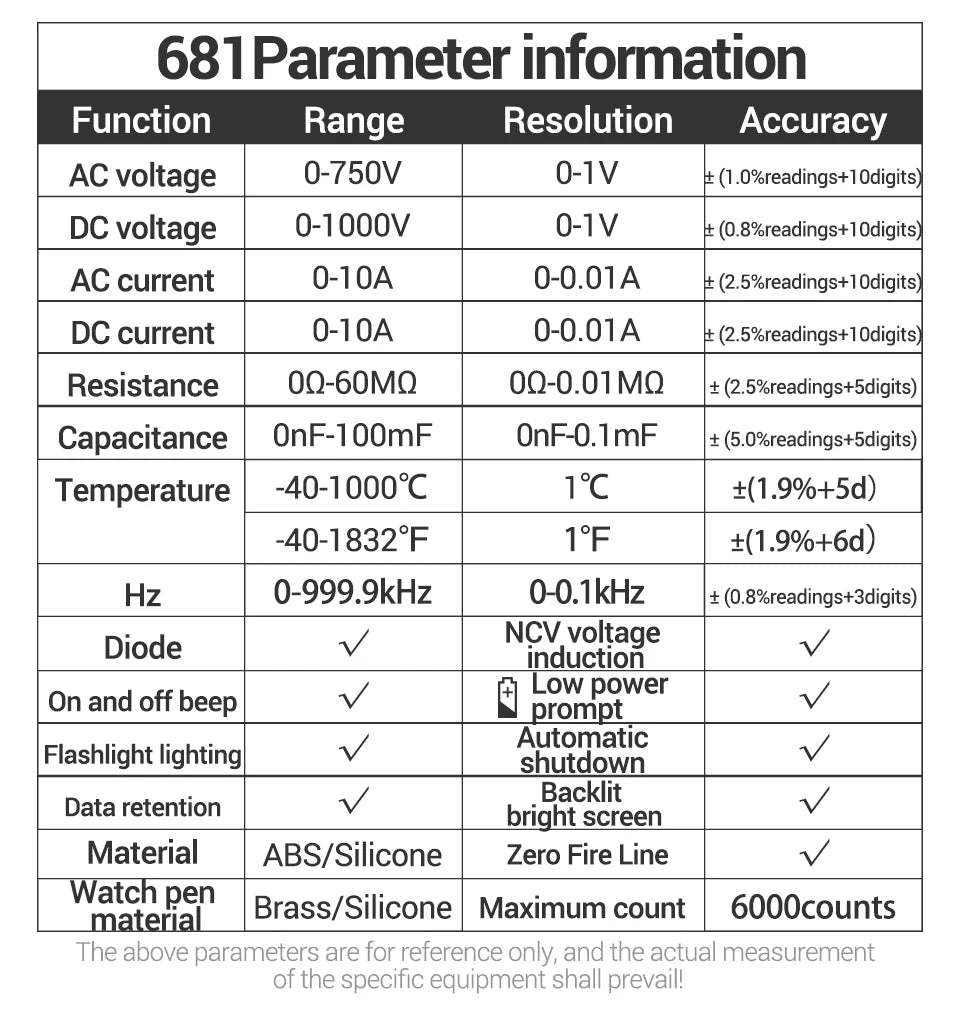

681 | |||
Function |
Range |
Resolution |
Accuracy |
DC voltage |
0~1000V |
0~1V |
±(0.8%+10) |
AC voltage |
0~750V |
0~1V |
±(1.0%+10) |

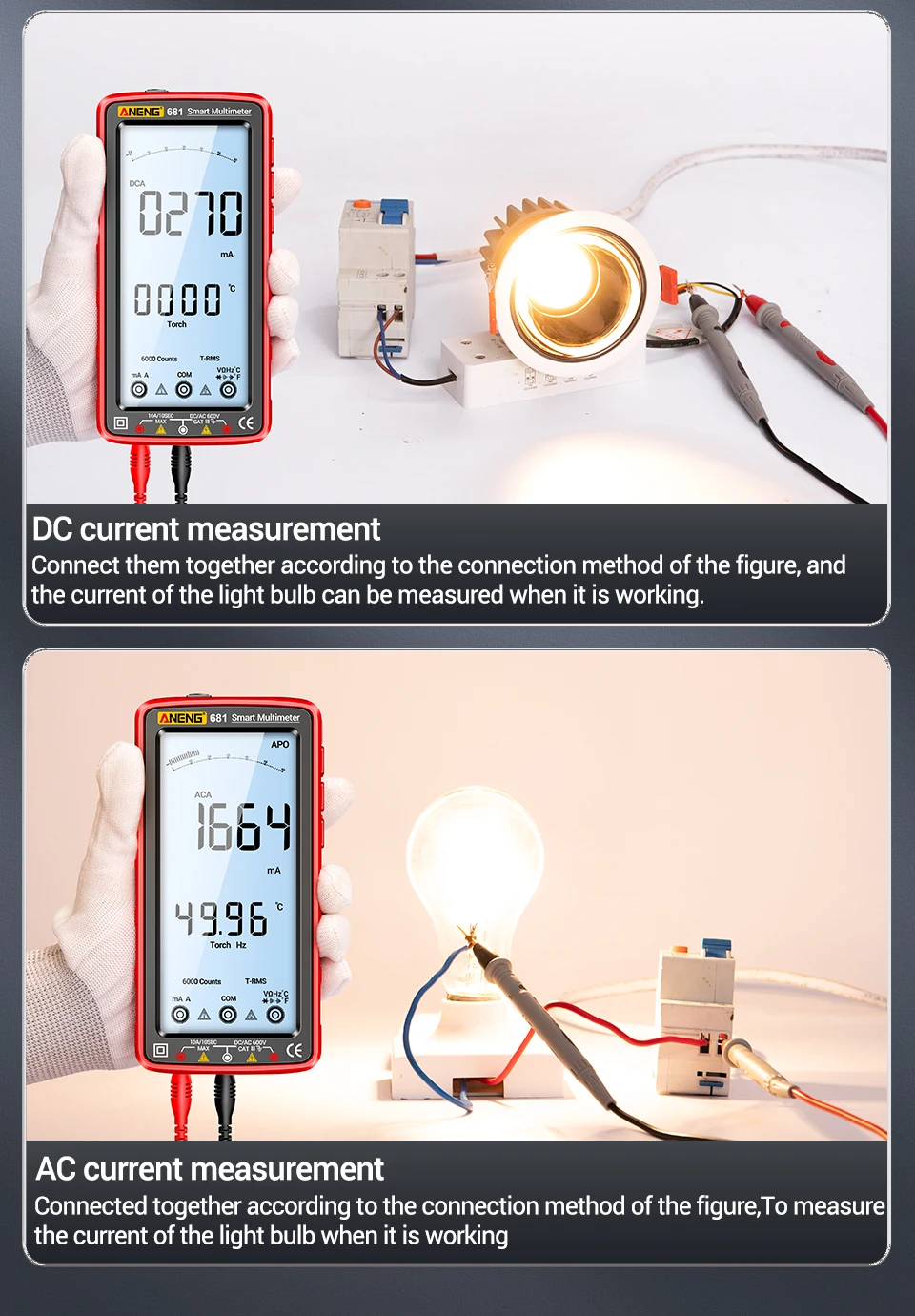

AC current |
0~10A |
0~0.01A |
±(2.5%+10) |
DC current |
0~10A |
0~0.01A |
±(2.5%+10) |
Capacitance |
0nF~100mF |
0nF~0.1mF |
±(5.0%+5) |
Resistance |
0Ω~60MΩ |
0Ω~0.01MΩ |
±(2.5%+5) |
Temperature ℃ |
-40 ℃~1000℃ |
1℃ |
±(1.9%+5d) |
Temperature °F |
-40°F~1832 °F |
1°F |
±(1.9%+6d) |

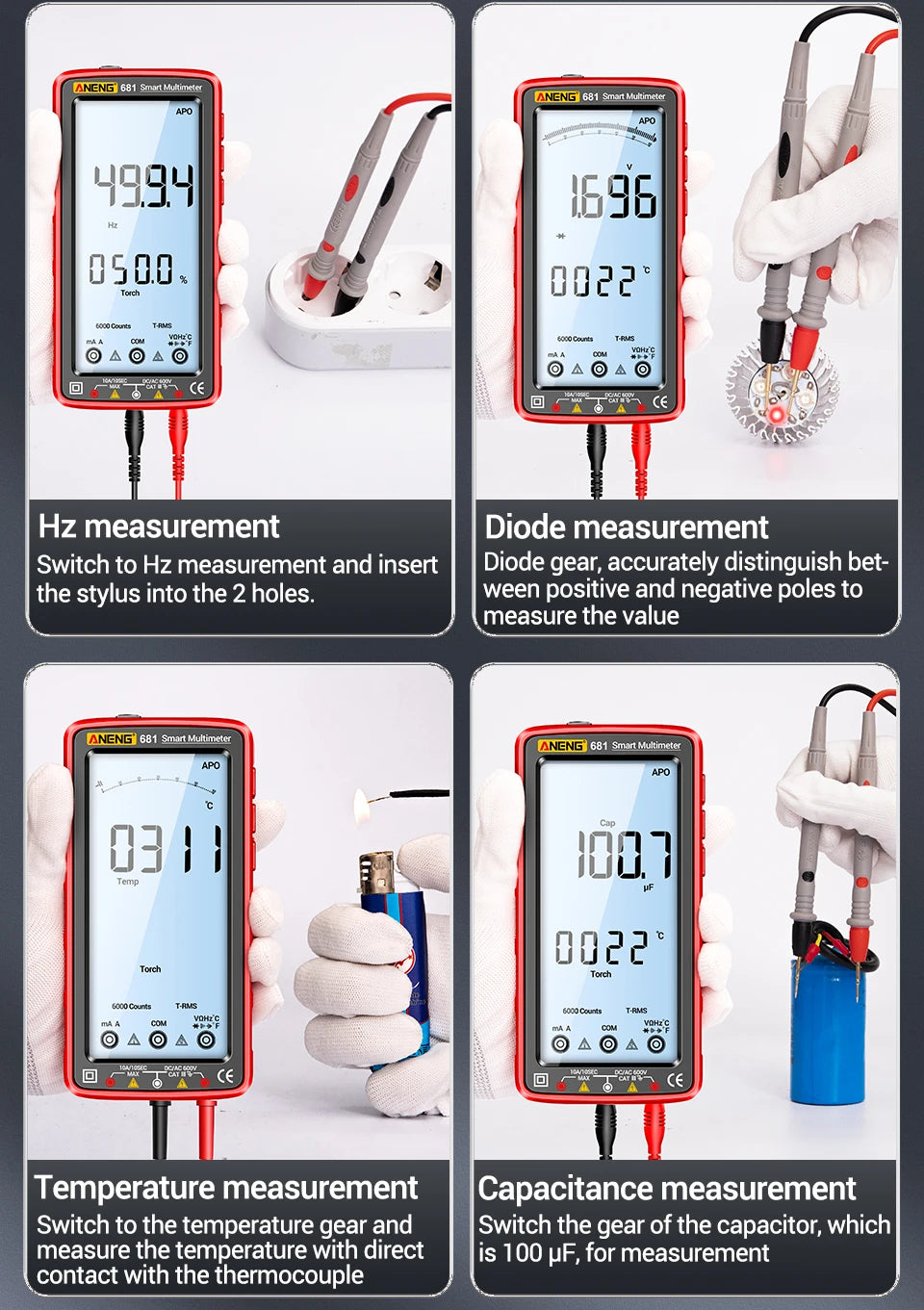

Hz |
0-999.9 kHz |
0~0.1 kHz |
±(0.8%+3d) |
Diode |
√ |

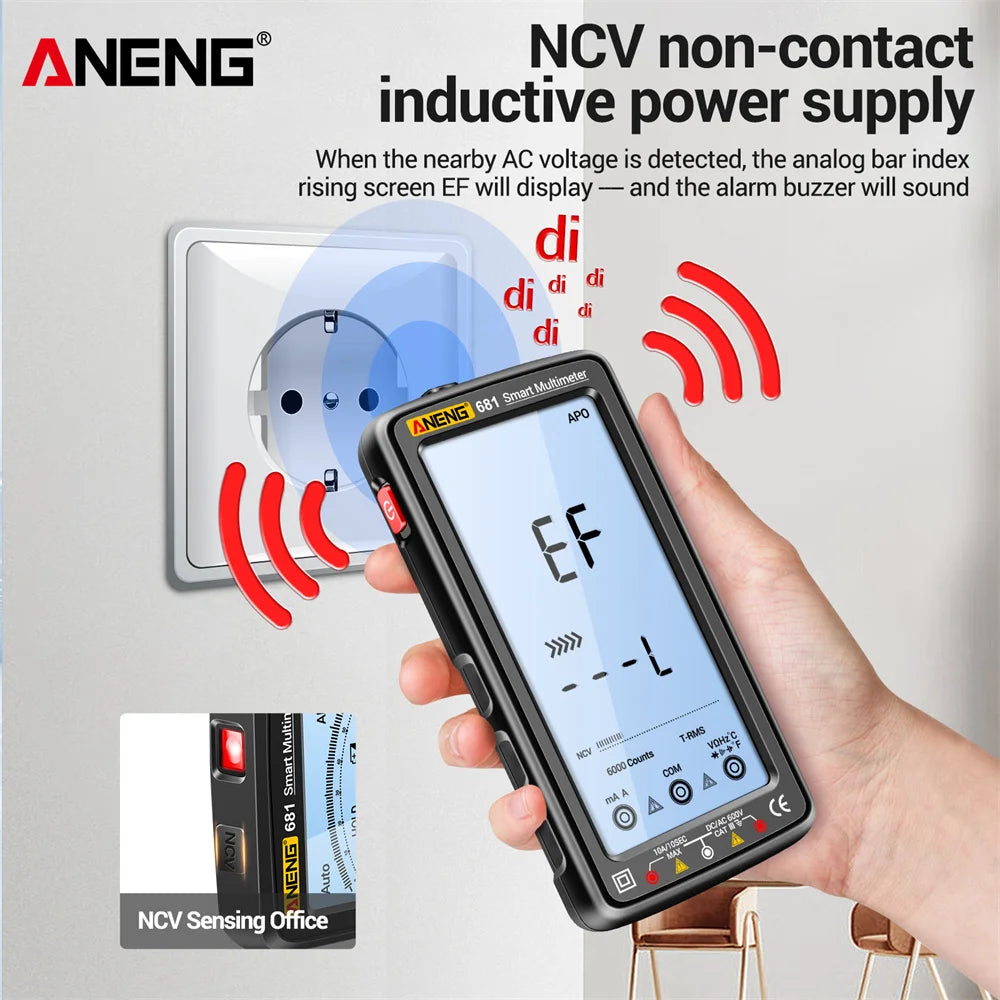

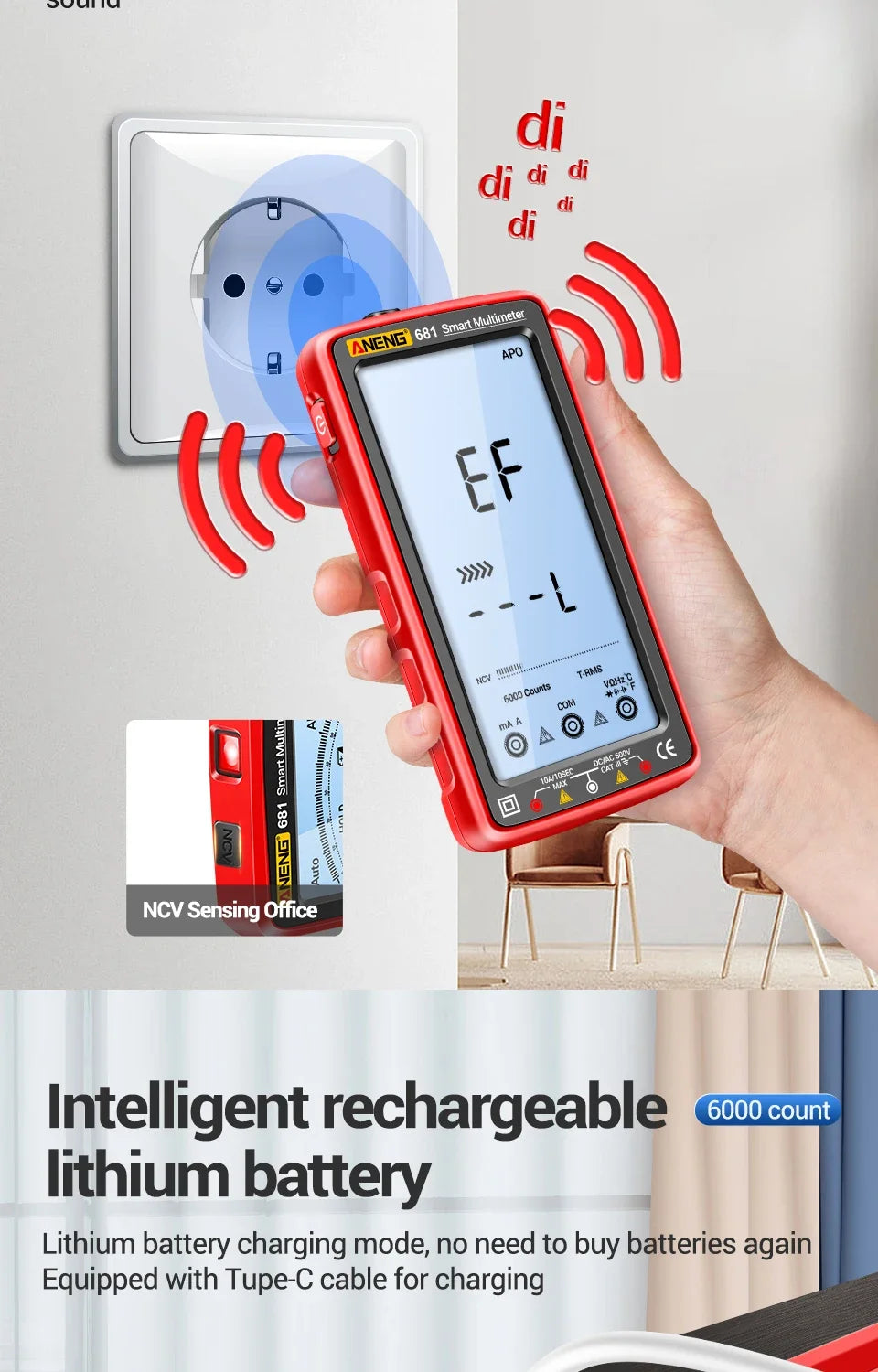

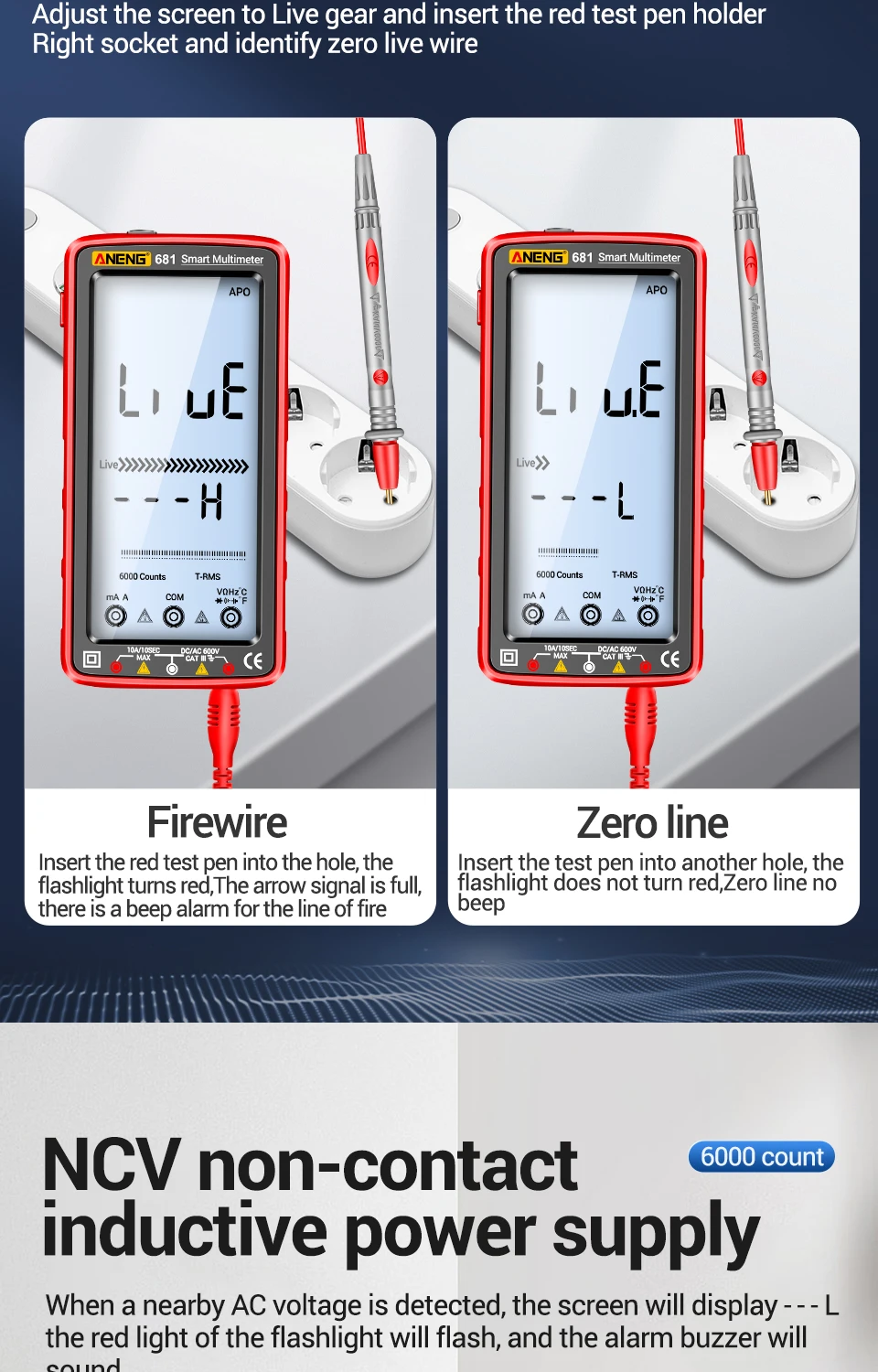

NCV voltage induction |
√ |
On-Off beep |
√ |
Low power prompt |
√ |
Auto shut-down |
√ |
Flashlight |
√ |
Keep data |
√ |
Backlit bright screen |
√ |
Material |
ABS/ Silicone |
Zero Fire |
√ |
Watch pen material |
Brass/Silicone |

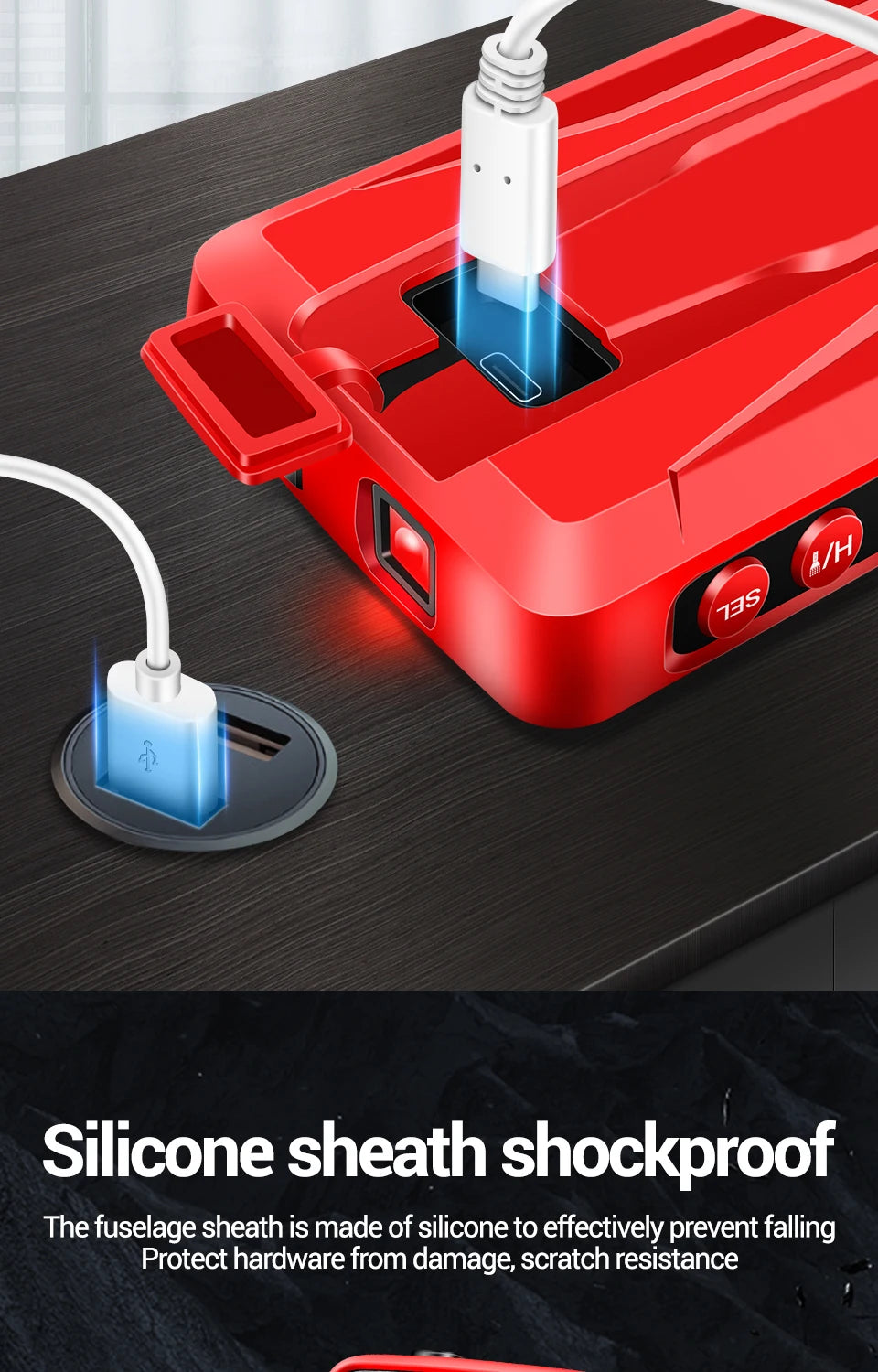

Silicone sheath |
√ |

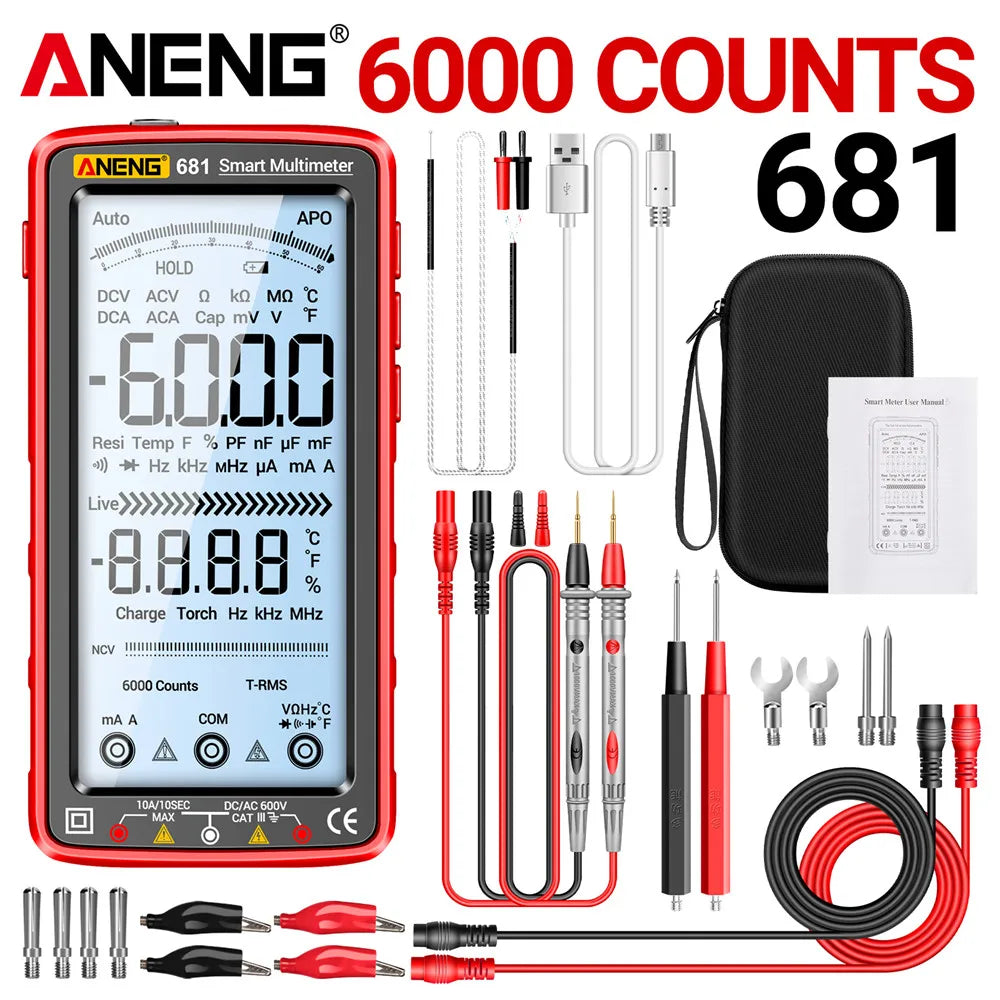

Charging line |
√ |
With a stylus |
√ |
Test leads |
according to the choose |
Temperature line |
√ |
Model |
681 |
Max Count |
6000 Counts |

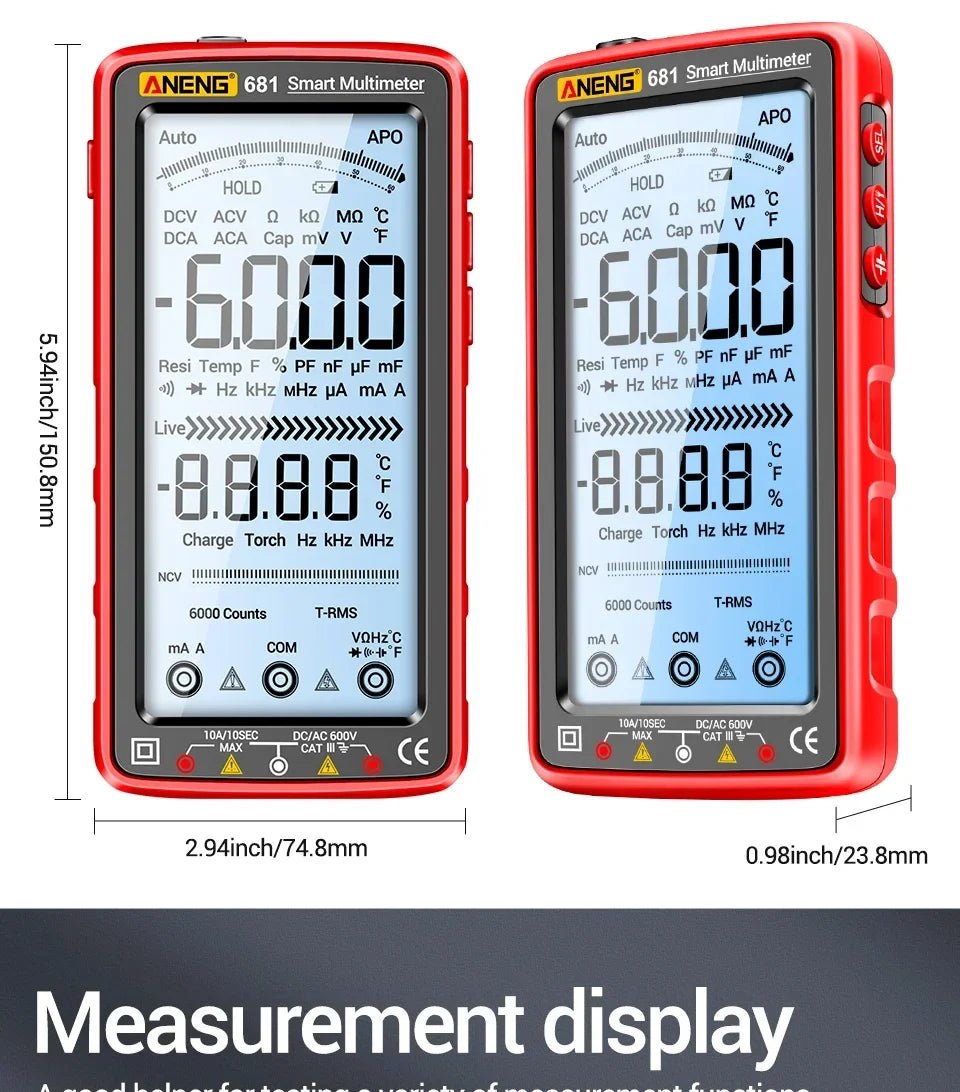

Product Size |
150.8*74.8*23.8 mm/5.94*2.94*0.98 inch |
||
Packing List:
According to your choose
